Brand: Weidmuller

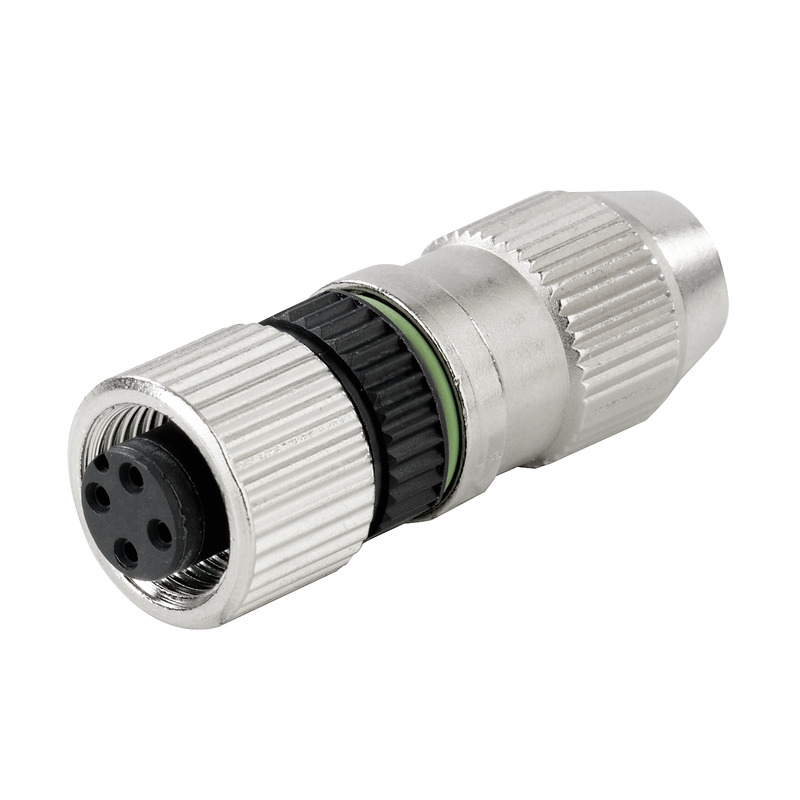

Weidmuller 1781540001 Round Plug
Image Disclaimers Message
Brand: Weidmuller
Weidmuller 1781540001 Round Plug
Brand: Weidmuller
Weidmuller 1781540001 Round Plug
Part #:1781540001
SKU #: 2244279
$7.50/EA
Key Features
Part #:1781540001
SKU #: 2244279
Brand: Weidmuller
Connector Size: M12
Connector Type: Female Socket
Specifications: 4-Pole, 4 A, >=50 Plugging Cycles, IP67
Temperature Rating (Degrees F): -25 to 85 deg C
Type: Field Customizable Straight
$7.50/EA
Specifications
Brand: Weidmuller
Connector Size: M12
Connector Type: Female Socket
Specifications: 4-Pole, 4 A, >=50 Plugging Cycles, IP67
Temperature Rating (Degrees F): -25 to 85 deg C
Type: Field Customizable Straight
Voltage Rating: 32 V
Wire Size: 2.9 to 5.1 mm
Housing material: CuZn
Insulation resistance: 10^8 Ohm
UNSPSC: 32151902
UPC: 04032248430017
Weidmuller 1781540001 Round Plug
Additional Description: WEID-1781540001 SAIB-4-IDC-M12 SMALL ROUND PLUG (FIELD CUSTOMISABLE), FEMALE SOCKET, STRAIGHT, INSULATION DISPLACEMENT CONNECTION, M12, 0.14 MM, 0.34 MM, 2.9 - 5.1 MM, NUMBER OF POLES: 4, SHIELD CONNECTION: NO
Catalog Description: Circular connectors for the individual assembly of conductors. Space-saving design.
