1782320000
Weidmuller 1782320000 Electrical Terminal
Part Number # 1782320000
SKU # 2349721
$191.00 / 25Each
Typical price:$212.18 / Each
Weidmuller 1782320000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1782320000 |
| SKU #: | 2349721 |
| Amperage Rating: | 10/20 A |
| Dimensions: | 110.5 mm H x 5.1 mm W x 69 mm D |
| Type: | 3-Tier Feed-Through Modular Standard |
| UNSPSC: | 39121410 |
| UPC: | 04032248176540 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$191.00 / 25Each
Typical price:$212.18 / Each
Quantity:

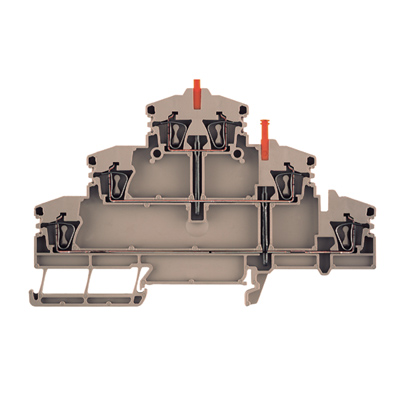

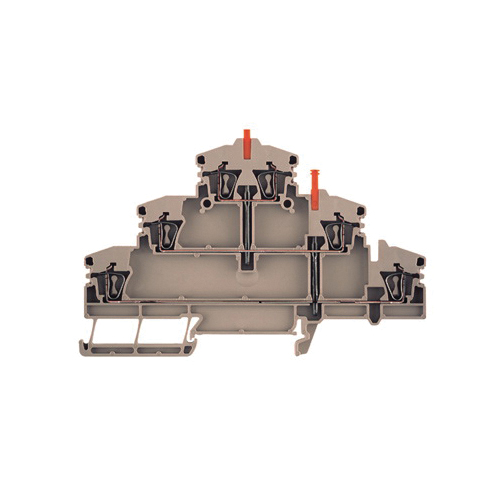

- Klippon Terminal Block, 3-Tier Feed-Through Modular Standard, Series: Z Series, 300/400 V, 10/20 A, 26 to 12 AWG Wire, 10 mm Wire Strip Length, DIN Rail Mounting, Tension Clamp Connection, -50 to 120 deg C, Wemid, Dark Beige, 110.5 mm H x 5.1 mm W x 69 mm D Dimensions
1782320000 Item Features
- Tension clamp technology is a universal contact system for all common conductor connection types
- Its fantastic level of flexibility makes the tension clamp a profitable alternative connection
- 400 V IEC, 300 V UL and CSA
- 20 A IEC, 10 A UL and CSA
1782320000 Standards
RoHS Compliant|UL File No. E60693|CSA 200039-1228250|UL 94 V-0 Flammability Rating|CE Certified|EAC Certified|RINA 1861|IEC 60947-7-1SKU #2349721Part Number #1782320000UNSPSC39121410UPC04032248176540
Image provided may only be a representation of final product and may include optional equipment
