Part Number # 1784030001
SKU # 2401385
Image Disclaimers Message
1784030001

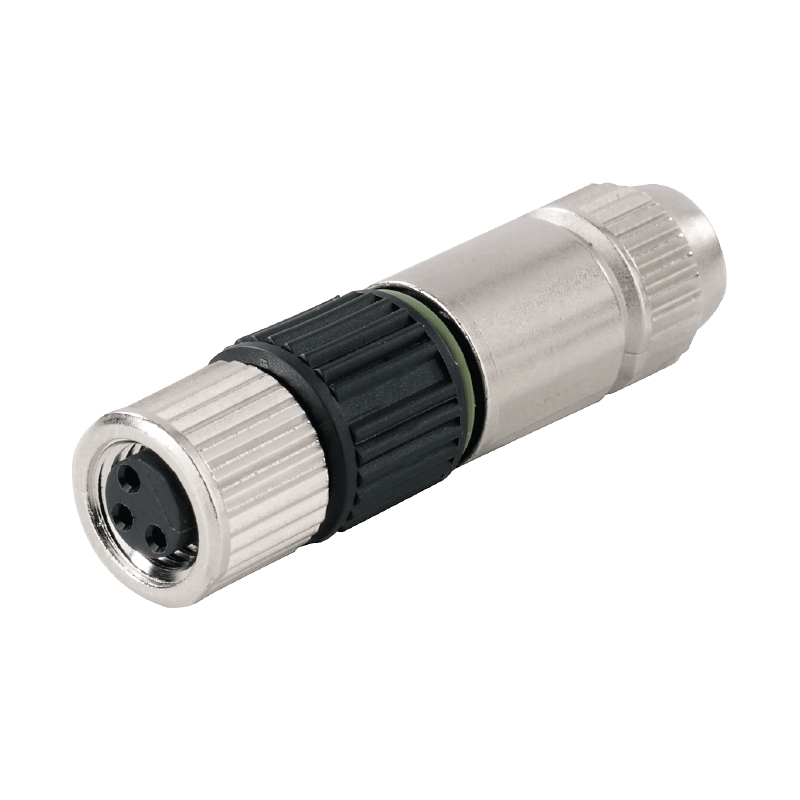

Weidmuller 1784030001 Round Plug
Part Number # 1784030001
SKU # 2401385
$9.00 / Each
Typical price:$9.29 / Each
Weidmuller 1784030001 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1784030001 |
| SKU #: | 2401385 |
| Connector Size: | M8 |
| Connector Type: | Female Socket |
| Specifications: | 3-Pole, 4 A, >/=50 Plugging Cycles, IP67 |
| Temperature Rating (Degrees F): | -25 to 85 deg C |
| Type: | Field Customizable Straight |
| Wire Size: | 3.2 to 5.4 mm |
| Country of origin: | DE |
| Housing material: | CuZn |
| Insulation resistance: | 10^8 Ohm |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 32151902 |
| UPC: | 04032248429981 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$9.00 / Each
Typical price:$9.29 / Each
Quantity:
Weidmuller 1784030001 Round Plug
Brand: Weidmuller
Part Number: 1784030001
Additional Description: WEID-1784030001 SAIB-3-IDC-M8 SMALL ROUND PLUG (FIELD CUSTOMISABLE), FEMALE SOCKET, STRAIGHT, INSULATION DISPLACEMENT CONNECTION, M8, 0.14 MM, 0.34 MM, 3.2 - 5.4 MM, NUMBER OF POLES: 3, SHIELD CONNECTION: NO
Catalog Description: Circular connectors for the individual assembly of conductors. Space-saving design.
1784030001 Standards
RoHS Compliant|EAC Certified|REACH SVHC Lead 7439-92-1SKU #2401385Part Number #1784030001UNSPSC32151902UPC04032248429981
