Part Number # 1784040001
SKU # 2147172
Image Disclaimers Message
1784040001

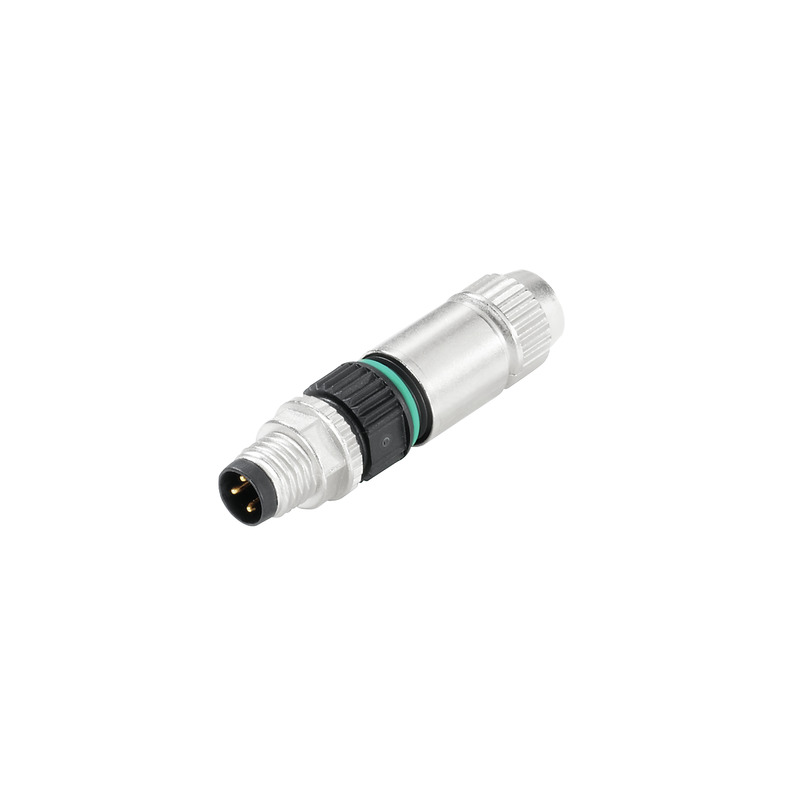

Weidmuller 1784040001 Round Plug
Part Number # 1784040001
SKU # 2147172
Weidmuller 1784040001 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1784040001 |
| SKU #: | 2147172 |
| Connector Size: | M8 |
| Connector Type: | Pin |
| Specifications: | 3-Pole, 4 A, >/=50 Plugging Cycles, IP67 |
| Temperature Rating (Degrees F): | -25 to 85 deg C |
| Type: | Field Customizable Straight |
| Wire Size: | 3.2 to 5.4 mm |
| Country of origin: | DE |
| Housing material: | CuZn |
| Insulation resistance: | 10^8 Ohm |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 32151902 |
| UPC: | 04032248429998 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Weidmuller 1784040001 Round Plug
Brand: Weidmuller
Part Number: 1784040001
Weidmuller Round Plug, Field Customizable Straight, Pin Connector, M8 Connector, 3.2 to 5.4 mm Wire, 32 V, 10^8 Ohm Insulation, CuZn Housing, -25 to 85 deg C, 3-Pole, 4 A, >/=50 Plugging Cycles, IP67
Additional Description: WEID-1784040001 SAIS-3-IDC M8 SMALL ROUND PLUG (FIELD CUSTOMISABLE), PIN, STRAIGHT, INSULATION DISPLACEMENT CONNECTION, M8, 0.14 MM, 0.34 MM, 3.2 - 5.4 MM, NUMBER OF POLES: 3, SHIELD CONNECTION: NO
Catalog Description: Circular connectors for the individual assembly of conductors. Space-saving design.
1784040001 Includes
01784040001 Standards
RoHS Compliant|EAC Certified|REACH SVHC Lead 7439-92-1SKU #2147172Part Number #1784040001UNSPSC32151902UPC04032248429998
