1786960000

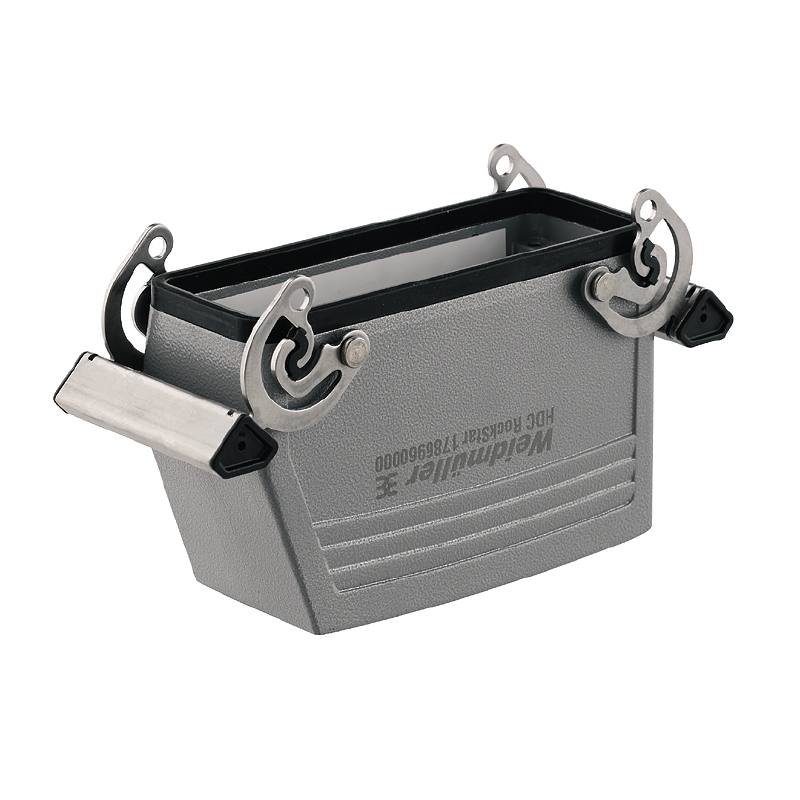

Weidmuller 1786960000 Closed Connector Base
Part Number # 1786960000
SKU # 2340249
Weidmuller 1786960000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1786960000 |
| SKU #: | 2340249 |
| Dimensions: | 76 mm H x 55 mm W x 93.3 mm D |
| Entry Type: | M32 |
| Specifications: | SZ 6, IP65, 1.2 N-m Tightening Torque, Side Locking Clamp, Upper Side |
| Suitable For Use With: | ModuPlug Modular System and RockStar NEMA 4X/IP66 Housing |
| Type: | High Plug |
| UNSPSC: | 32151901 |
| UPC: | 04032248204205 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Weidmuller 1786960000 Closed Connector Base
Brand: Weidmuller
Part Number: 1786960000
Weidmuller Closed Connector Base, Coupling Extension High, Top Entry Position, M32 Entry, For Use With: ModuPlug Modular System and RockStar NEMA 4X/IP66 Housing, -40 to 125 deg C, SZ 8, IP65, 1.2 N-m Tightening Torque, Side Locking Clamp, Lower Side, Die Cast Aluminum, Gray, Powder Coated, 79 mm H x 55.5 mm W x 163 mm D
Additional Description: WEID-1786960000 HDC 64D KBU 1M32G HOUSING (INDUSTRY PLUG-IN CONNECTORS), COUPLING HOUSING, SIDE-LOCKING CLAMP ON LOWER SIDE, SIZE: 8, IP65 (IN PLUGGED CONDITION)
Catalog Description: The special die-cast alloy and multi-layered surface sealing provide complete protection for the enclosure.
1786960000 Item Features
- The special die cast alloy and the multi-layered surface sealing provide complete protection for the HDC housings
- The cleverly designed interlock system is manufactured from stainless steel
- This guarantees a long lifespan with high resistance to corrosion and impact
- The housing interlock system provides integrated safety
- Our unique, patented spring system provides the housing interlock with a secure grip and prevents accidental opening
- The laser marking allows for easy and quick identification
- Each housing is permanently labelled with a laser marking so that each product can be quickly designated and positioned
1786960000 Standards
RoHS Compliant|REACH SVHC Lead 7439-92-1|CE Certified|cULus Recognized|UL File No. E92202SKU #2340249Part Number #1786960000UNSPSC32151901UPC04032248204205
Image provided may only be a representation of final product and may include optional equipment
