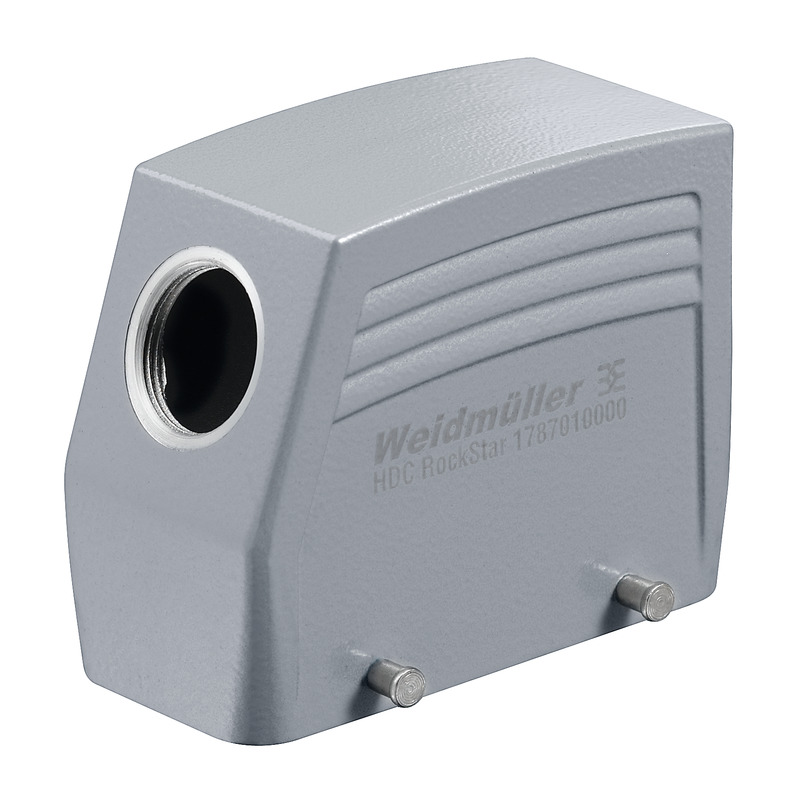

Weidmuller 1787000000 High Hood With Threading, Side M32 Entry, Die Cast Aluminum
Part Number # 1787000000
SKU # 2387206
Weidmuller 1787000000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1787000000 |
| SKU #: | 2387206 |
| Dimensions: | 76 mm H x 59 mm W x 93.3 mm D |
| Entry Type: | M32 |
| Finish: | Powder Coated |
| Specifications: | IP65 Degree of Protection, Side-Locking Clamp on Lower Side, 1.2 N-m Tightening Torque, SZ 6 |
| Suitable For Use With: | RockStar NEMA Type 4X Plug Housing and HDC Enclosure, RockStar® NEMA Type 4X Plug Housing and HDC Enclosure |
| Temperature Rating (Degrees F): | -40 to 125 deg C |
| Type: | High |
| Color: | Gray |
| Country of origin: | CN |
| Material: | Die Cast Aluminum |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 32151901 |
| UPC: | 00040322482042 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Weidmuller 1787000000 High Hood With Threading, Side M32 Entry, Die Cast Aluminum
Brand: Weidmuller
Part Number: 1787000000
Weidmuller Hood, High, Side Entry Position, M32 Entry, For Use With: RockStar NEMA Type 4X Plug Housing and HDC Enclosure, -40 to 125 deg C, Specifications: IP65 Degree of Protection, Side-Locking Clamp on Lower Side, 1.2 N-m Tightening Torque, SZ 6, Die Cast Aluminum, Gray, Powder Coated, 76 mm H x 59 mm W x 93.3 mm D Dimensions
Additional Description: WEID-1787000000 HDC 40D TSBU 1M32G HOUSING (INDUSTRY PLUG-IN CONNECTORS), CABLE ENTRY FROM SIDE, PLUG HOUSING, SIDE-LOCKING CLAMP ON LOWER SIDE, SIZE: 6, IP65 (IN PLUGGED CONDITION)
Catalog Description: The special die-cast alloy and multi-layered surface sealing provide complete protection for the enclosure.
1787000000 Application
Industrial Applications1787000000 Includes
01787000000 Item Features
- Special die cast alloy and the multi-layered surface sealing provide complete protection for the HDC housings
- Cleverly designed interlock system is manufactured from stainless steel
- Guarantees a long lifespan with high resistance to corrosion and impact
- Housing interlock system provides integrated safety
- Unique, patented spring system provides the housing interlock with a secure grip and prevents accidental opening
- Laser marking allows for easy and quick identification
- Each housing is permanently labelled with a laser marking so that each product can be quickly designated and positioned
1787000000 Standards
RoHS Compliant|CE Certified|cULus Recognized|REACH SVHC Lead 7439-92-1SKU #2387206Part Number #1787000000UNSPSC32151901UPC00040322482042
