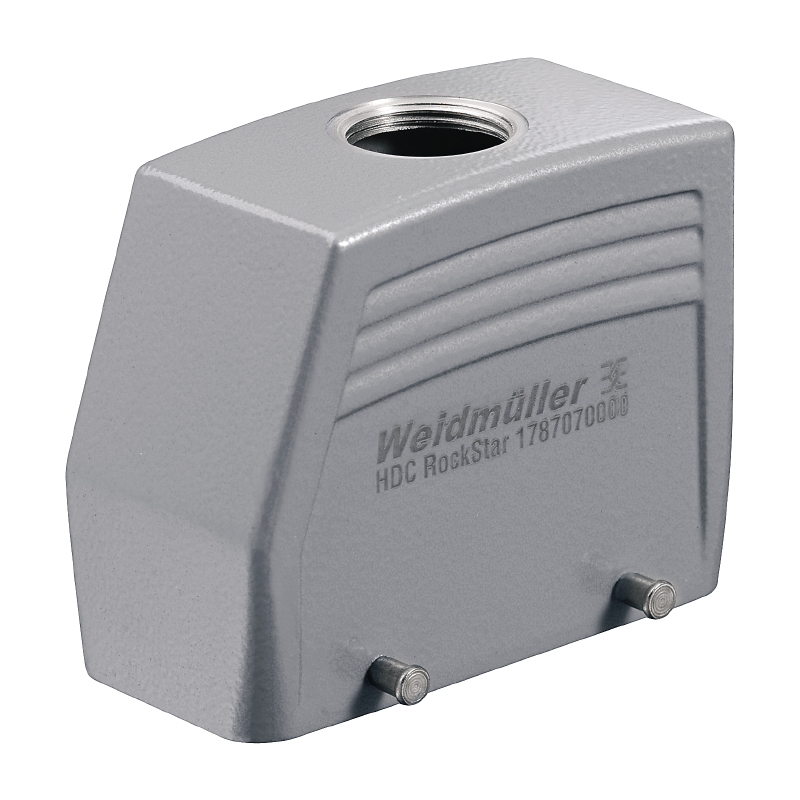

Weidmuller 1787070000 High Plug Housing Hood, Top M25 Entry, Die Cast Aluminum
Part Number # 1787070000
SKU # 2381791
Weidmuller 1787070000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1787070000 |
| SKU #: | 2381791 |
| Dimensions: | 76 mm H x 57.8 mm W x 93.3 mm D |
| Entry Type: | M25 |
| Finish: | Powder Coated |
| Specifications: | SZ 6, IP65, 1.2 N-m Tightening Torque, Side Locking Clamp, Lower Side |
| Suitable For Use With: | ModuPlug Modular System and RockStar NEMA 4X/IP66 Housing, ModuPlug Modular System and RockStar® NEMA 4X/IP66 Housing |
| Temperature Rating (Degrees F): | -40 to 125 deg C |
| Type: | High Plug |
| Color: | Gray |
| Country of origin: | CN |
| Material: | Die Cast Aluminum |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 32151901 |
| UPC: | 04032248204410 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Weidmuller 1787070000 High Plug Housing Hood, Top M25 Entry, Die Cast Aluminum
Brand: Weidmuller
Part Number: 1787070000
Weidmuller Housing Hood, High Plug, Top Entry Position, M25 Entry, For Use With: ModuPlug Modular System and RockStar NEMA 4X/IP66 Housing, -40 to 125 deg C, SZ 6, IP65, 1.2 N-m Tightening Torque, Side Locking Clamp, Lower Side, Die Cast Aluminum, Gray, Powder Coated, 76 mm H x 57.8 mm W x 93.3 mm D
Additional Description: WEID-1787070000 HDC 40D TOBU 1M25G HOUSING (INDUSTRY PLUG-IN CONNECTORS), CABLE ENTRY FROM TOP, PLUG HOUSING, SIDE-LOCKING CLAMP ON LOWER SIDE, SIZE: 6, IP65 (IN PLUGGED CONDITION)
Catalog Description: The special die-cast alloy and multi-layered surface sealing provide complete protection for the enclosure.
1787070000 Includes
01787070000 Item Features
- The special die cast alloy and the multi-layered surface sealing provide complete protection for the HDC housings
- The cleverly designed interlock system is manufactured from stainless steel
- This guarantees a long lifespan with high resistance to corrosion and impact
- The housing interlock system provides integrated safety
- Our unique, patented spring system provides the housing interlock with a secure grip and prevents accidental opening
- The laser marking allows for easy and quick identification
- Each housing is permanently labelled with a laser marking so that each product can be quickly designated and positioned
1787070000 Standards
RoHS Compliant|REACH SVHC Lead 7439-92-1|CE Certified|cULus Recognized|UL File No. E92202SKU #2381791Part Number #1787070000UNSPSC32151901UPC04032248204410
