Part Number # 1787100000
SKU # 2396854
Image Disclaimers Message
1787100000

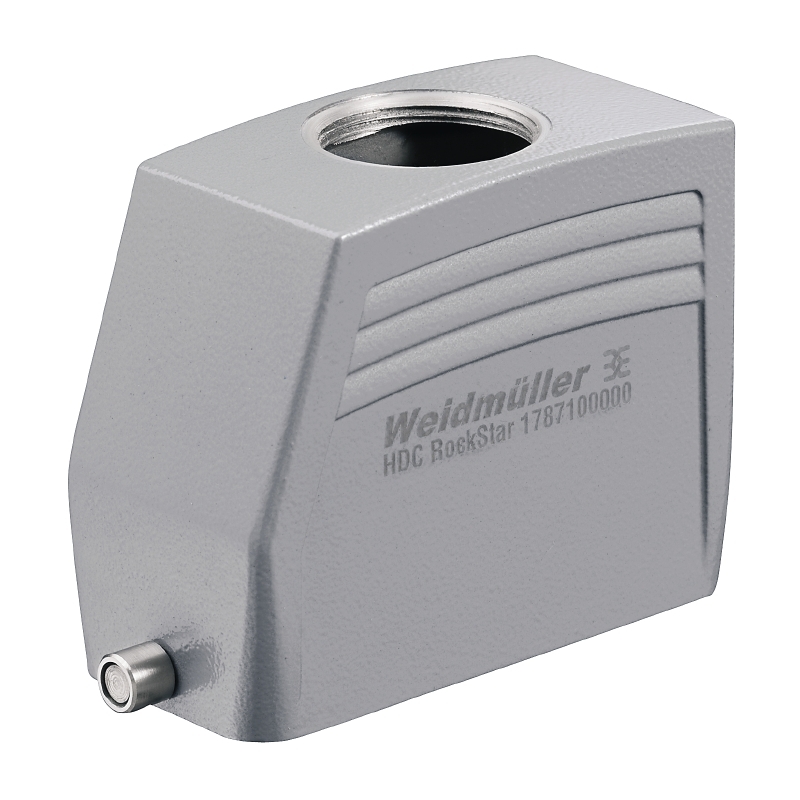

Weidmuller 1787100000 Housing Hood
Part Number # 1787100000
SKU # 2396854
Weidmuller 1787100000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1787100000 |
| SKU #: | 2396854 |
| Dimensions: | 76 mm H x 45.5 mm W x 108.8 mm D |
| Entry Type: | M32 |
| Finish: | Powder Coated |
| Specifications: | SZ 6, IP65, 1.2 N-m Tightening Torque, End Locking Clamp, Lower Side |
| Suitable For Use With: | ModuPlug Modular System and RockStar NEMA 4X/IP66 Housing, ModuPlug Modular System and RockStar® NEMA 4X/IP66 Housing |
| Temperature Rating (Degrees F): | -40 to 125 deg C |
| Type: | High Plug |
| Color: | Gray |
| Country of origin: | CN |
| Material: | Die Cast Aluminum |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 32151901 |
| UPC: | 04032248204441 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Weidmuller 1787100000 Housing Hood
Brand: Weidmuller
Part Number: 1787100000
Weidmuller Housing Hood, High Plug, Top Entry Position, M32 Entry, For Use With: ModuPlug Modular System and RockStar NEMA 4X/IP66 Housing, -40 to 125 deg C, SZ 6, IP65, 1.2 N-m Tightening Torque, End Locking Clamp, Lower Side, Die Cast Aluminum, Gray, Powder Coated, 76 mm H x 45.5 mm W x 108.8 mm D
Additional Description: WEID-1787100000 HDC 40D TOLU 1M32G HOUSING (INDUSTRY PLUG-IN CONNECTORS), CABLE ENTRY FROM TOP, PLUG HOUSING, END-LOCKING CLAMP, LOWER SIDE, SIZE: 6, IP65 (IN PLUGGED CONDITION)
Catalog Description: The special die-cast alloy and multi-layered surface sealing provide complete protection for the enclosure.
1787100000 Includes
01787100000 Item Features
- The special die cast alloy and the multi-layered surface sealing provide complete protection for the HDC housings
- The cleverly designed interlock system is manufactured from stainless steel
- This guarantees a long lifespan with high resistance to corrosion and impact
- The housing interlock system provides integrated safety
- Our unique, patented spring system provides the housing interlock with a secure grip and prevents accidental opening
- The laser marking allows for easy and quick identification
- Each housing is permanently labelled with a laser marking so that each product can be quickly designated and positioned
1787100000 Standards
RoHS Compliant|REACH SVHC Lead 7439-92-1|CE Certified|cULus Recognized|UL File No. E92202SKU #2396854Part Number #1787100000UNSPSC32151901UPC04032248204441
