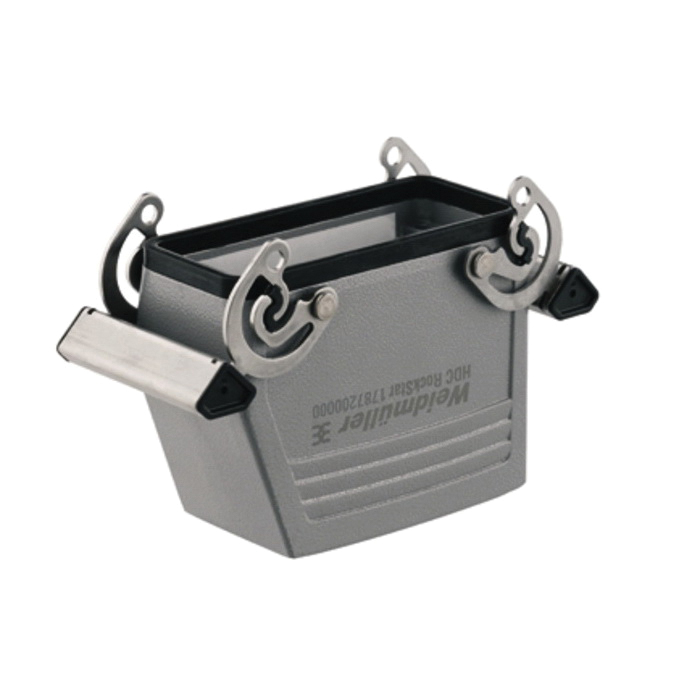

Weidmuller 1787200000 Bulkhead Pass Through Connector
Part Number # 1787200000
SKU # 2383304
1787200000
Weidmuller 1787200000 Bulkhead Pass Through Connector
Part Number # 1787200000
SKU # 2383304
$29.76 / Each
Typical price:$34.25 / Each
Weidmuller 1787200000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1787200000 |
| SKU #: | 2383304 |
| Dimensions: | 79 mm H x 55 mm W |
| Entry Type: | M25 |
| Finish: | Powder Coated |
| Specifications: | SZ 6, IP65 Degree of Protection, 1.2 N-m Tightening Torque |
| Suitable For Use With: | ModuPlug Modular System and RockStar Heavy Duty Connector |
| Temperature Rating (Degrees F): | -40 to 125 deg C |
| Type: | High Industry Plug-In |
| Country of origin: | CN |
| Material: | Die Cast Aluminum |
| Mounting type: | Panel |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 32151901 |
| UPC: | 04032248204540 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$29.76 / Each
Typical price:$34.25 / Each
Quantity:
- Weidmuller Closed Connector Base, High Industry Plug-In, Bottom Entry Position, M25 Entry, Panel Mounting, For Use With: ModuPlug Modular System and RockStar Heavy Duty Connector, -40 to 125 deg C, Specifications: SZ 6, IP65 Degree of Protection, 1.2 N-m Tightening Torque, Die Cast Aluminum, Gray, Powder Coated, 79 mm H x 55 mm W Dimensions
1787200000 Application
General Mechanical Engineering, Materials Handling and Factory Construction, Packaging Machines, Transport and Traffic Engineering, Energy Technology, Lighting and Stage Equipment and Process Engineering Applications1787200000 Item Features
- Side locking clamp on lower side
- The special die cast alloy and the multi-layered surface sealing provide complete protection for the HDC housings
- The cleverly designed interlock system is manufactured from stainless steel
- This guarantees a long lifespan with high resistance to corrosion and impact
- The housing interlock system provides integrated safety
- Our unique, patented spring system provides the housing interlock with a secure grip and prevents accidental opening
- The laser marking allows for easy and quick identification
- Each housing is permanently labelled with a laser marking so that each product can be quickly designated and positioned
1787200000 Standards
REACH SVHC Lead 7439-92-1|REACH SVHC DIBP 84-69-5|UL File No. E92202|CE Certified|cULus RecognizedSKU #2383304Part Number #1787200000UNSPSC32151901UPC04032248204540
Image provided may only be a representation of final product and may include optional equipment
