1787620000

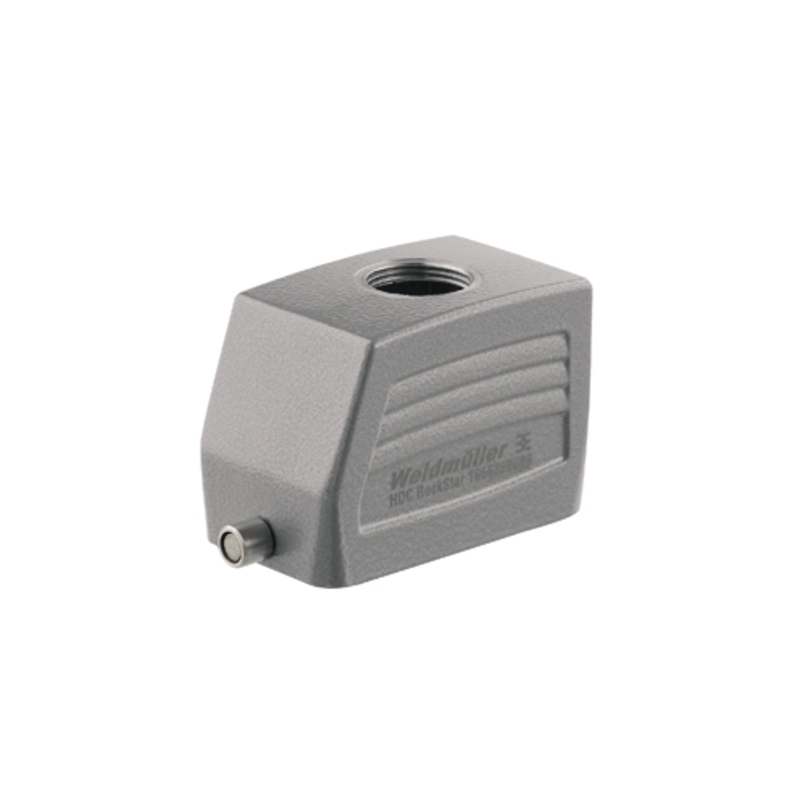

Weidmuller 1787620000 Electrical Plug
Part Number # 1787620000
SKU # 2252446
$17.29 / Each
Typical price:$19.91 / Each
Weidmuller 1787620000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1787620000 |
| SKU #: | 2252446 |
| Dimensions: | 57 mm H x 77.7 mm W x 92.5 mm D |
| Entry Type: | M25 |
| Finish: | Powder Coated |
| Specifications: | SZ 4, IP65, 1.2 N-m Tightening Torque, 40 mm H x 82 mm W Mount, End Locking Clamp, Lower Side |
| Suitable For Use With: | RockStar NEMA 4X/IP66 Housing |
| Temperature Rating (Degrees F): | -40 to 125 deg C |
| Type: | Standard |
| Country of origin: | CN |
| Material: | Die Cast Aluminum |
| Mounting type: | Surface |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 32151901 |
| UPC: | 04032248204960 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$17.29 / Each
Typical price:$19.91 / Each
Quantity:
- Weidmuller Closed Connector Base, Standard, Side Entry Position, M25 Entry, Surface Mount, For Use With: RockStar NEMA 4X/IP66 Housing, -40 to 125 deg C, SZ 4, IP65, 1.2 N-m Tightening Torque, 40 mm H x 82 mm W Mount, End Locking Clamp, Lower Side, Die Cast Aluminum, Gray, Powder Coated, 57 mm H x 77.7 mm W x 92.5 mm D
1787620000 Item Features
- The special die cast alloy and the multi-layered surface sealing provide complete protection for the HDC housings
- The cleverly designed interlock system is manufactured from stainless steel
- This guarantees a long lifespan with high resistance to corrosion and impact
- The housing interlock system provides integrated safety
- Our unique, patented spring system provides the housing interlock with a secure grip and prevents accidental opening
- The laser marking allows for easy and quick identification
- Each housing is permanently labelled with a laser marking so that each product can be quickly designated and positioned
1787620000 Standards
REACH SVHC Lead 7439-92-1|REACH SVHC DIBP 84-69-5|CE CertifiedSKU #2252446Part Number #1787620000UNSPSC32151901UPC04032248204960
Image provided may only be a representation of final product and may include optional equipment
