Part Number # 1788420000
SKU # 2389051
Image Disclaimers Message
1788420000

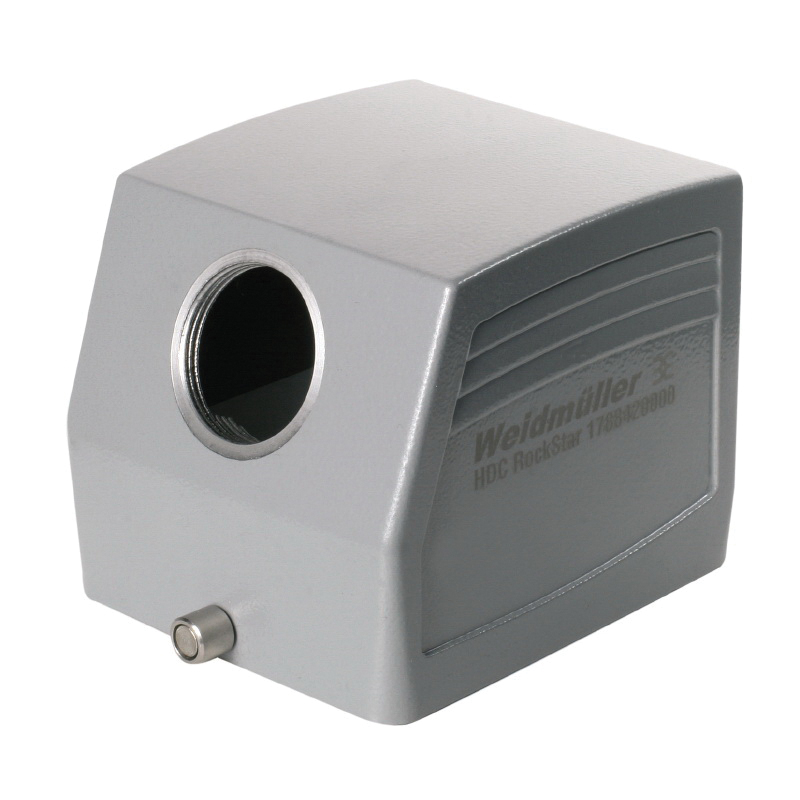

Weidmuller 1788420000 Hood
Part Number # 1788420000
SKU # 2389051
Weidmuller 1788420000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1788420000 |
| SKU #: | 2389051 |
| Dimensions: | 79 mm H x 82.5 mm W x 108.5 mm D |
| Entry Type: | M32 |
| Finish: | Powder Coated |
| Specifications: | IP65 Degree of Protection, End Locking Clamp on Lower Side, 2 N-m Tightening Torque, SZ 10 |
| Suitable For Use With: | RockStar NEMA Type 4X Plug Housing and HDC Enclosure, RockStar® NEMA Type 4X Plug Housing and HDC Enclosure |
| Temperature Rating (Degrees F): | -40 to 125 deg C |
| Type: | Standard |
| Color: | Gray |
| Country of origin: | CN |
| Material: | Die Cast Aluminum |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 32151901 |
| UPC: | 04032248205950 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Weidmuller 1788420000 Hood
Brand: Weidmuller
Part Number: 1788420000
Weidmuller Hood, Standard, Side Entry Position, M32 Entry, For Use With: RockStar NEMA Type 4X Plug Housing and HDC Enclosure, -40 to 125 deg C, Specifications: IP65 Degree of Protection, End Locking Clamp on Lower Side, 2 N-m Tightening Torque, SZ 10, Die Cast Aluminum, Gray, Powder Coated, 79 mm H x 82.5 mm W x 108.5 mm D Dimensions
Additional Description: WEID-1788420000 HDC 32B TSLU 1M32G HOUSING (INDUSTRY PLUG-IN CONNECTORS), CABLE ENTRY FROM SIDE, PLUG HOUSING, END-LOCKING CLAMP, LOWER SIDE, SIZE: 10, IP65 (IN PLUGGED CONDITION)
Catalog Description: The special die-cast alloy and multi-layered surface sealing provide complete protection for the enclosure.
1788420000 Application
Industrial Applications1788420000 Includes
01788420000 Item Features
- Special die cast alloy and the multi-layered surface sealing provide complete protection for the HDC housings
- Cleverly designed interlock system is manufactured from stainless steel
- Guarantees a long lifespan with high resistance to corrosion and impact
- Housing interlock system provides integrated safety
- Unique, patented spring system provides the housing interlock with a secure grip and prevents accidental opening
- Laser marking allows for easy and quick identification
- Each housing is permanently labelled with a laser marking so that each product can be quickly designated and positioned
1788420000 Standards
RoHS Compliant|CE Certified|cULus Recognized|REACH SVHC Lead 7439-92-1SKU #2389051Part Number #1788420000UNSPSC32151901UPC04032248205950
