Part Number # 1788520000
SKU # 2221878
Image Disclaimers Message
1788520000

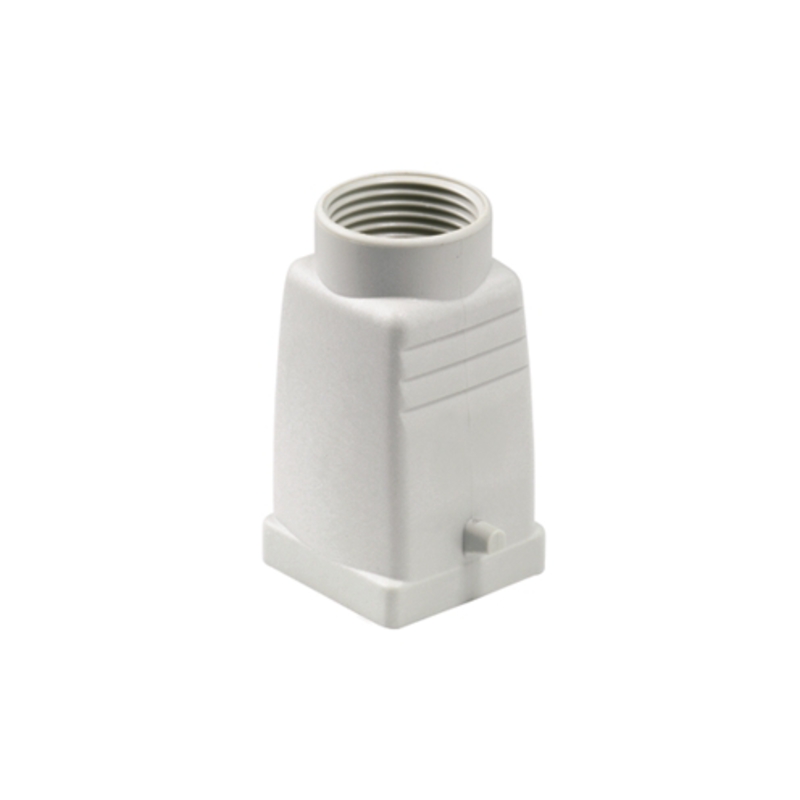

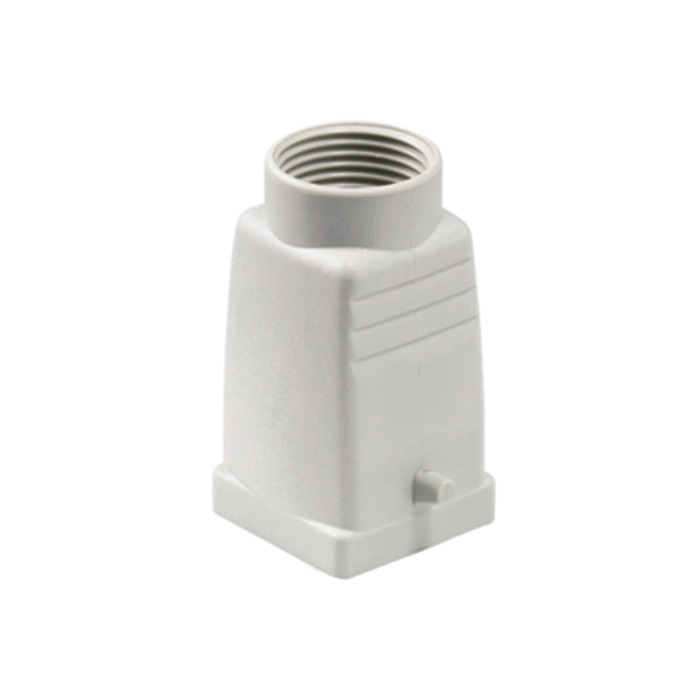

Weidmuller 1788520000 Hood
Part Number # 1788520000
SKU # 2221878
Weidmuller 1788520000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1788520000 |
| SKU #: | 2221878 |
| Dimensions: | 50 mm H x 36.5 mm W x 26.8 mm D |
| Entry Type: | M20 |
| Specifications: | IP65 Degree of Protection, Side-Locking Clamp on Lower Side, 0.5 N-m Tightening Torque, SZ 1 |
| Suitable For Use With: | RockStar NEMA Type 4X Plug Housing and HDC Enclosure, RockStar® NEMA Type 4X Plug Housing and HDC Enclosure |
| Temperature Rating (Degrees F): | -40 to 125 deg C |
| Type: | Standard |
| Color: | Beige |
| Country of origin: | CN |
| Material: | Plastic |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 32151901 |
| UPC: | 04032248206056 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Weidmuller 1788520000 Hood
Brand: Weidmuller
Part Number: 1788520000
Weidmuller Hood, Standard, Top Entry Position, M20 Entry, For Use With: RockStar NEMA Type 4X Plug Housing and HDC Enclosure, -40 to 125 deg C, Specifications: IP65 Degree of Protection, Side-Locking Clamp on Lower Side, 0.5 N-m Tightening Torque, SZ 1, Plastic, Beige, 50 mm H x 36.5 mm W x 26.8 mm D Dimensions
Additional Description: WEID-1788520000 HDC 07A TOLU 1M20G HOUSING (INDUSTRY PLUG-IN CONNECTORS), CABLE ENTRY FROM TOP, PLUG HOUSING, SIDE-LOCKING CLAMP ON LOWER SIDE, SIZE: 1, IP65 (IN PLUGGED CONDITION)
Catalog Description: The special die-cast alloy and multi-layered surface sealing provide complete protection for the enclosure.
1788520000 Application
Industrial Applications1788520000 Includes
01788520000 Item Features
- Special die cast alloy and the multi-layered surface sealing provide complete protection for the HDC housings
- Cleverly designed interlock system is manufactured from stainless steel
- Guarantees a long lifespan with high resistance to corrosion and impact
- Housing interlock system provides integrated safety
- Unique, patented spring system provides the housing interlock with a secure grip and prevents accidental opening
- Laser marking allows for easy and quick identification
- Each housing is permanently labelled with a laser marking so that each product can be quickly designated and positioned
1788520000 Standards
RoHS Compliant|CE Certified|cULus RecognizedSKU #2221878Part Number #1788520000UNSPSC32151901UPC04032248206056
