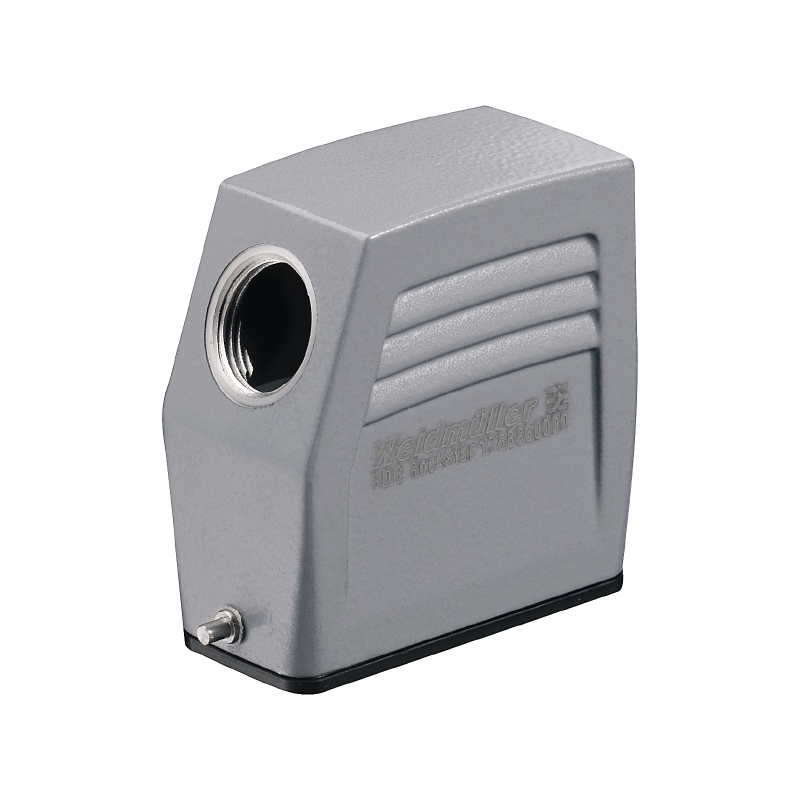

Weidmuller 1788860000 Housing Hood
Part Number # 1788860000
SKU # 2278396
Weidmuller 1788860000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1788860000 |
| SKU #: | 2278396 |
| Dimensions: | 68 mm H x 32.5 mm W x 72.5 mm D |
| Entry Type: | M20 |
| Finish: | Powder Coated |
| Specifications: | SZ 2, IP65, 0.5 N-m Tightening Torque, End Locking Clamp, Lower Side |
| Suitable For Use With: | RockStar NEMA 4X/IP66 Housing, RockStar® NEMA 4X/IP66 Housing |
| Temperature Rating (Degrees F): | -40 to 125 deg C |
| Type: | High Plug |
| Color: | Gray |
| Country of origin: | CN |
| Material: | Die Cast Aluminum |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 32151901 |
| UPC: | 04032248206407 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Weidmuller 1788860000 Housing Hood
Brand: Weidmuller
Part Number: 1788860000
Weidmuller Housing Hood, High Plug, Side Entry Position, M20 Entry, For Use With: RockStar NEMA 4X/IP66 Housing, -40 to 125 deg C, SZ 2, IP65, 0.5 N-m Tightening Torque, End Locking Clamp, Lower Side, Die Cast Aluminum, Gray, Powder Coated, 68 mm H x 32.5 mm W x 72.5 mm D
Additional Description: WEID-1788860000 HDC 15A TSLU 1M20G HOUSING (INDUSTRY PLUG-IN CONNECTORS), CABLE ENTRY FROM SIDE, PLUG HOUSING, END-LOCKING CLAMP, LOWER SIDE, SIZE: 2, IP65 (IN PLUGGED CONDITION)
Catalog Description: The special die-cast alloy and multi-layered surface sealing provide complete protection for the enclosure.
1788860000 Includes
01788860000 Item Features
- The special die cast alloy and the multi-layered surface sealing provide complete protection for the HDC housings
- The cleverly designed interlock system is manufactured from stainless steel
- This guarantees a long lifespan with high resistance to corrosion and impact
- The housing interlock system provides integrated safety
- Our unique, patented spring system provides the housing interlock with a secure grip and prevents accidental opening
- The laser marking allows for easy and quick identification
- Each housing is permanently labelled with a laser marking so that each product can be quickly designated and positioned
1788860000 Standards
RoHS Compliant|REACH SVHC Lead 7439-92-1|REACH SVHC DIBP 84-69-5|CE Certified|cULus Recognized|UL File No. E92202SKU #2278396Part Number #1788860000UNSPSC32151901UPC04032248206407
