Brand: Weidmuller

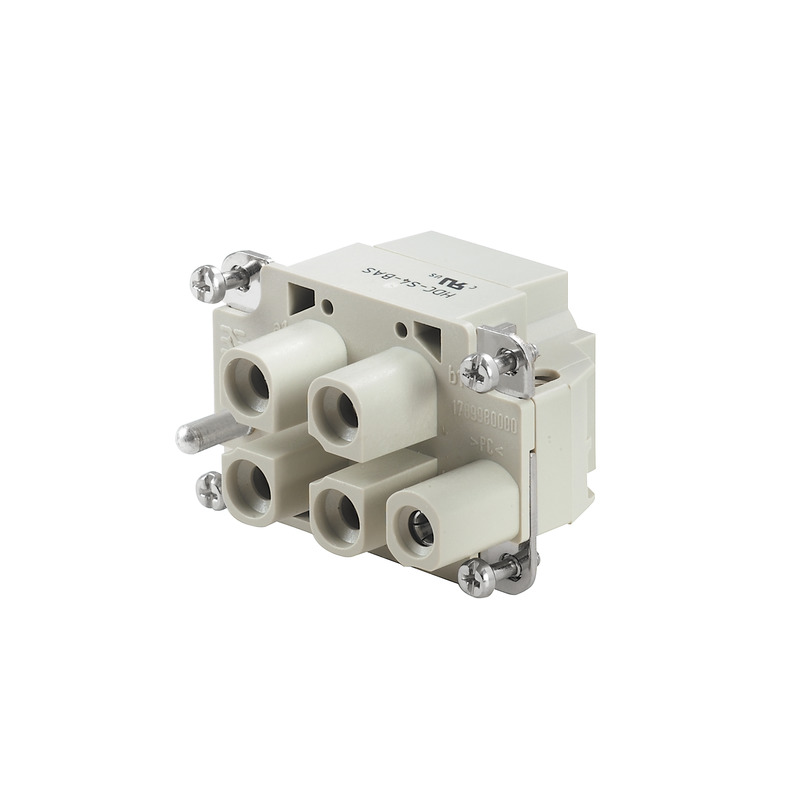

Weidmuller 1789980000 Contact Insert
Image Disclaimers Message
Brand: Weidmuller
Weidmuller 1789980000 Contact Insert
Brand: Weidmuller
Weidmuller 1789980000 Contact Insert
Part #:1789980000
SKU #: 2140284
$33.95/EA
Key Features
Part #:1789980000
SKU #: 2140284
Brand: Weidmuller
Dimensions: 40.4 mm H x 34 mm W x 51 mm D
Finish: Silver Passivated
Number of Positions: 4+Ground
Series: MixMate Series
Specifications: SZ 3, 1000 V, 40 A
$33.95/EA
- The MixMate series of connectors can simultaneously transmit high rated currents and voltages as well as signals
- An axial screw can be used to secure the wire
Specifications
Brand: Weidmuller
Dimensions: 40.4 mm H x 34 mm W x 51 mm D
Finish: Silver Passivated
Number of Positions: 4+Ground
Series: MixMate Series
Specifications: SZ 3, 1000 V, 40 A
Suitable For Use With: RockStar Heavy Duty Connector
Temperature Rating (Degrees F): -40 to 125 deg C
Wire Size: 14 to 11 AWG
Connection type: Axial Screw/Female
Material: PC Glass Fiber Reinforced
UNSPSC: 32151901
UPC: 04032248212040
Weidmuller 1789980000 Contact Insert
Additional Description: WEID-1789980000 HDC S4 BAS CONTACT INSERT (INDUSTRY PLUG-IN CONNECTORS), FEMALE, 1000 V, 40 A, NUMBER OF POLES: 4, AXIAL SCREW CONNECTION, SIZE: 3
Catalog Description: Insert for industrial plug-in connectors, consisting of contact element and insulating body.
