1789990000

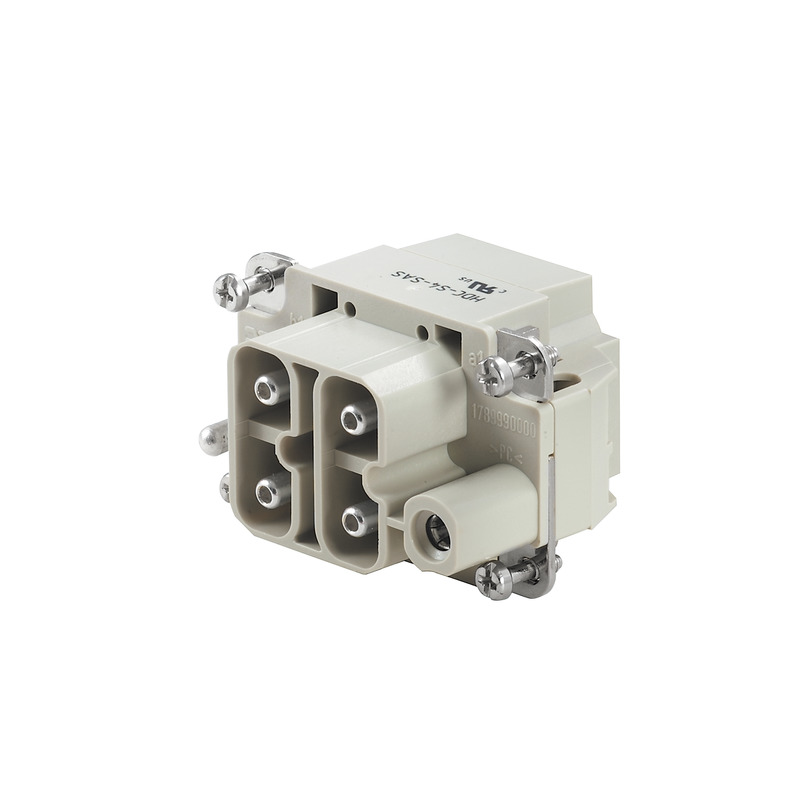

Weidmuller 1789990000 Electrical Plug
Part Number # 1789990000
SKU # 2140283
$42.90 / Each
Typical price:$49.38 / Each
Weidmuller 1789990000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1789990000 |
| SKU #: | 2140283 |
| Dimensions: | 50.8 mm H x 34 mm W x 111 mm D |
| Finish: | Silver Passivated |
| Number of Positions: | 12+Ground |
| Series: | MixMate Series |
| Specifications: | SZ 8, 690 V, 100 A |
| Suitable For Use With: | RockStar Heavy Duty Connector |
| Temperature Rating (Degrees F): | -40 to 125 deg C |
| Wire Size: | 6 to 2 AWG |
| Connection type: | Axial Screw/Female |
| Country of origin: | DE |
| Material: | PC Glass Fiber Reinforced |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 32151901 |
| UPC: | 04032248212057 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$42.90 / Each
Typical price:$49.38 / Each
Quantity:
- Weidmuller Contact Insert, Series: MixMate Series, 12+Ground Positions, 6 to 2 AWG Wire, Axial Screw/Female, For Use With: RockStar Heavy Duty Connector, -40 to 125 deg C, SZ 8, 690 V, 100 A, PC Glass Fiber Reinforced, Silver Passivated, 50.8 mm H x 34 mm W x 111 mm D
1789990000 Item Features
- The MixMate series of connectors can simultaneously transmit high rated currents and voltages as well as signals
- An axial screw can be used to secure the wire
1789990000 Standards
RoHS Compliant|CSA Certified|UL 94V-0 Flammable Rating|DIN EN 61984|cULus Recognized|EAC Certified|UL File No. E92202SKU #2140283Part Number #1789990000UNSPSC32151901UPC04032248212057
Image provided may only be a representation of final product and may include optional equipment
