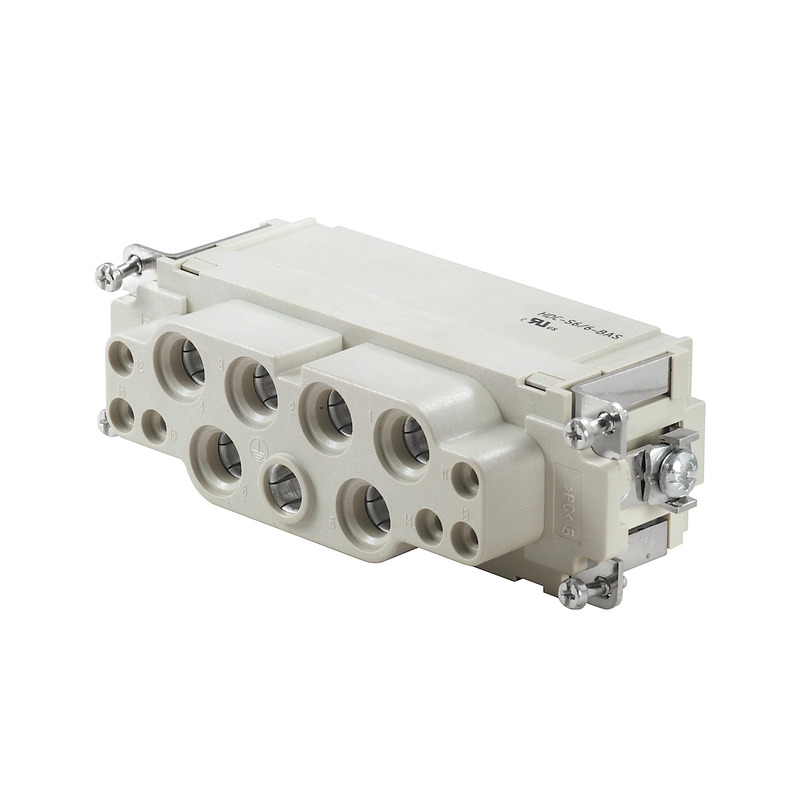

Weidmuller 1790020000 Bulkhead Pass Through Connector
Part Number # 1790020000
SKU # 2372406

1790020000
Weidmuller 1790020000 Bulkhead Pass Through Connector
Part Number # 1790020000
SKU # 2372406
Weidmuller 1790020000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1790020000 |
| SKU #: | 2372406 |
| Dimensions: | 47.8 mm H x 34 mm W x 111 mm D |
| Finish: | Silver Passivated |
| Number of Positions: | 12+Ground |
| Series: | MixMate Series |
| Specifications: | SZ 8, 690 V, 100 A |
| Suitable For Use With: | RockStar Heavy Duty Connector |
| Connection type: | Axial Screw/Male |
| Material: | PC Glass Fiber Reinforced |
| UNSPSC: | 32151901 |
| UPC: | 04032248212088 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Weidmuller 1790020000 Bulkhead Pass Through Connector
Brand: Weidmuller
Part Number: 1790020000
Additional Description: WEID-1790020000 HDC S6 6 BAS CONTACT INSERT (INDUSTRY PLUG-IN CONNECTORS), FEMALE, 690 V, 100 A, NUMBER OF POLES: 12, AXIAL SCREW CONNECTION, SIZE: 8
Catalog Description: Insert for industrial plug-in connectors, consisting of contact element and insulating body.
1790020000 Item Features
- The MixMate series of connectors can simultaneously transmit high rated currents and voltages as well as signals
- An axial screw can be used to secure the wire
1790020000 Standards
RoHS Compliant|CSA Certified|UL 94V-0 Flammable Rating|DIN EN 61984|cULus Recognized|EAC Certified|UL File No. E92202SKU #2372406Part Number #1790020000UNSPSC32151901UPC04032248212088
Image provided may only be a representation of final product and may include optional equipment
