1791110000

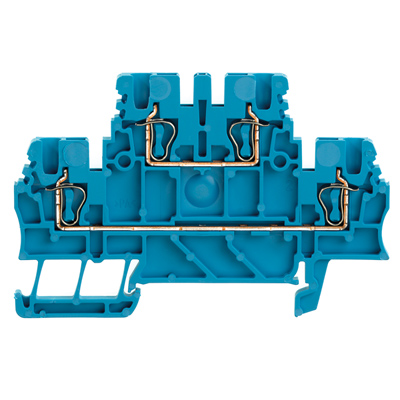

Weidmuller 1791110000 Electrical Terminal
Part Number # 1791110000
SKU # 2309921
$244.00 / 100Each
Typical price:$271.00 / Each
Weidmuller 1791110000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1791110000 |
| SKU #: | 2309921 |
| Amperage Rating: | 10/17.5 A |
| Dimensions: | 75.5 mm H x 3.5 mm W x 49.5 mm D |
| Series: | Z Series |
| Temperature Rating (Degrees F): | -50 to 120 deg C |
| Type: | 2-Tier Feed-Through Modular Standard |
| Wire Size: | 28 to 16 AWG |
| Connection type: | Tension Clamp |
| Material: | Wemid |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04032248239122 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$244.00 / 100Each
Typical price:$271.00 / Each
Quantity:
Weidmuller 1791110000 Electrical Terminal
Brand: Weidmuller
Part Number: 1791110000
Additional Description: WEID-1791110000 ZDK 1.5 BL MULTI-TIER MODULAR TERMINAL, TENSION-CLAMP CONNECTION, 1.5 MM, 500 V, 17.5 A, NUMBER OF LEVELS: 2, BLUE
Catalog Description: Terminal block with several levels for connecting or joining conductors with permanently secure contact. Hardened steel withstands the mechanical forces, tin-coated copper ensures top conductivity. Space-saving design.
1791110000 Item Features
- Tension clamp technology is a universal contact system for all common conductor connection types
- Its fantastic level of flexibility makes the tension clamp a profitable alternative connection
- 500 V IEC, 300 V UL
- 17.5 A IEC and 10 A UL
1791110000 Standards
RoHS Compliant|cULus File No. E60693 Recognized|CSA 154685-1461041|UL 94 V-0 Flammability Rating|CE Certified|EAC Certified|IEC 60947-7-1 (-7-2)SKU #2309921Part Number #1791110000UNSPSC39121410UPC04032248239122
Image provided may only be a representation of final product and may include optional equipment
