1797860000

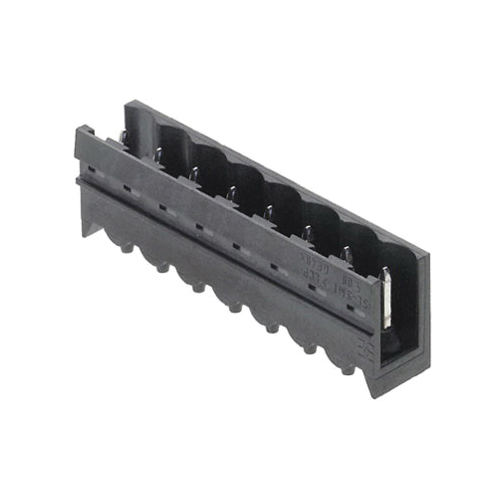

Weidmuller 1797860000 Quick Disconnects
Part Number # 1797860000
SKU # 2431703
$674.58 / 250Each
Typical price:$776.50 / Each
Weidmuller 1797860000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1797860000 |
| SKU #: | 2431703 |
| Connector Type: | Male Header |
| Dimensions: | 13.5 mm H x 40 mm W x 8.5 mm D |
| Number of Positions: | 8 |
| Series: | BL/SL 5.00 Series |
| Temperature Rating (Degrees F): | -50 to 100 deg C |
| Termination Type: | THT/THR Solder |
| Type: | Board Connection High Current Open Side |
| Contact material: | CuMg |
| Country of origin: | DE |
| Housing material: | LCP GF |
| Mounting type: | PCB |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 31163101 |
| UPC: | 04032248239863 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$674.58 / 250Each
Typical price:$776.50 / Each
Quantity:
- Weidmuller OMNIMATE Signal PCB Plug-In Connector, Board Connection High Current Open Side, Series: BL/SL 5.00 Series, 8 Positions, 1 Row, 5 mm Pitch/Row Spacing, PCB Mounting, 300/400 V, Male Header Connector, THT/THR Solder Termination, CuMg Contact, LCP GF Housing Material, -50 to 100 deg C, Black, 13.5 mm H x 40 mm W x 8.5 mm D Dimensions
1797860000 Item Features
- High temperature-resistant, straight, open pin header
- On tape, with 1.5 mm solder pin, optimized for automatic assembly
- 3.2 mm solder pin suitable for reflow and wave soldering
- The pin headers provide space for labelling and can be coded
- 400 V IEC, 300 V UL
- https://youtu.be/Ifq_mdNjF4g
1797860000 Standards
RoHS Compliant|IEC 60664-1, IEC 61984|UL File No. E60693 Recognized|UL 1059|CSA File No. 200039-1176845|UL 94 V-0 Flammability Rating|EAC CertifiedSKU #2431703Part Number #1797860000UNSPSC31163101UPC04032248239863
Image provided may only be a representation of final product and may include optional equipment
