1806030000

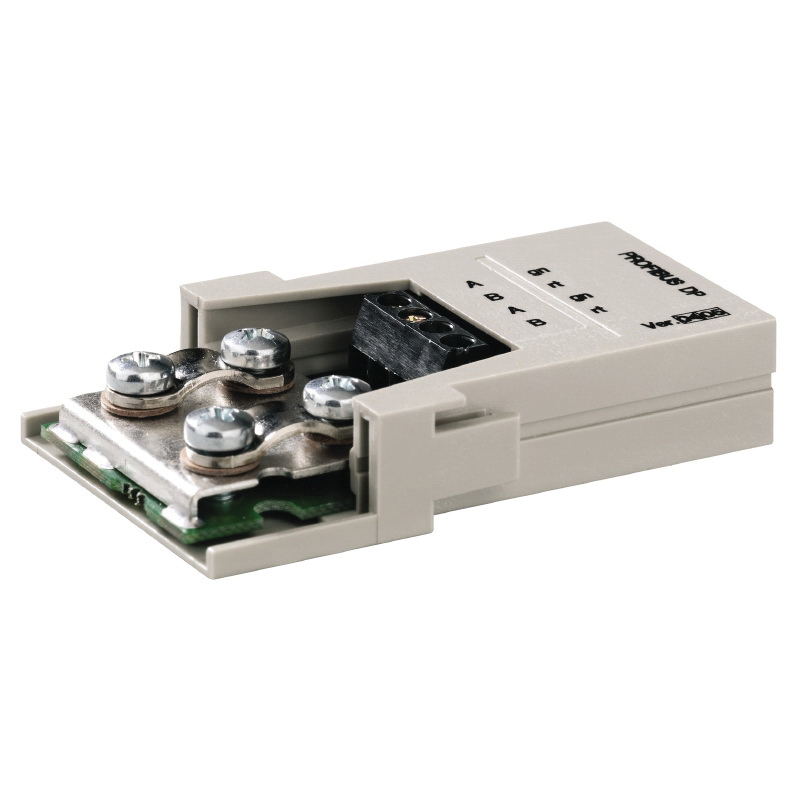

Weidmuller 1806030000 Backshell Connector
Part Number # 1806030000
SKU # 2163472
Weidmuller 1806030000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1806030000 |
| SKU #: | 2163472 |
| Dimensions: | 47.4 mm H x 11.4 mm W |
| Number of Positions: | 2+Ground |
| Series: | CM BUS PDP Series |
| UNSPSC: | 32151901 |
| UPC: | 04032248275144 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Weidmuller 1806030000 Backshell Connector
Brand: Weidmuller
Part Number: 1806030000
Weidmueller 1806030000 Connector Insert, Concept Module Female Heavy Duty, 34 MM Length X 11.4 MM Width X 47.4 MM Height, Screw Connection, Conductor Range: 16 AWG, 2 Way, Material: Polycarbonate Glass-Fiber Reinforced, Voltage Rating: 32 V Rated, 0.8 KV Rated Impulse, DIN EN 61984: 1 AMP, Temperature Rating: -20 To 85 DEG C, PCT ME25, ROHS Compliant
Additional Description: WEID-1806030000 HDC CM BUS 2BS T PBDP MODULE FOR INDUSTRY PLUG-IN CONNECTORS, POLYCARBONATE, COLOUR: BEIGE
Catalog Description: Plug-in connector module for connecting to a data bus system
1806030000 Standards
RoHS CompliantSKU #2163472Part Number #1806030000UNSPSC32151901UPC04032248275144
Image provided may only be a representation of final product and may include optional equipment
