Weidmuller 1811530000 Electrical Underground Bus Connector
Part Number # 1811530000
SKU # 2410747
1811530000
Weidmuller 1811530000 Electrical Underground Bus Connector
Part Number # 1811530000
SKU # 2410747
$90.36 / 100Each
Typical price:$104.00 / Each
Weidmuller 1811530000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1811530000 |
| SKU #: | 2410747 |
| Dimensions: | 20.24 mm H x 22.98 mm W x 14.5 mm D |
| UNSPSC: | 39121443 |
| UPC: | 04032248290635 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$90.36 / 100Each
Typical price:$104.00 / Each
Quantity:
- Weidmuller OMNIMATE Signal PCB Terminal Block, Series: LMZF Series, 300/630 V, 15/24 A, 4 Pole, 26 to 14 AWG Wire, 6 mm Wire Strip Length, THT Solder Terminal, 5 mm Spacing, Through-Hole Mounting, Tension Clamp with Actuator Connection, -50 to 120 deg C, Wemid, Black, 20.24 mm H x 22.98 mm W x 14.5 mm D Dimensions
1811530000 Item Features
- The compact installation terminal for the standard wire cross-section size of 2.5 sq-mm
- Tension clamp connection with a 135 deg outlet direction, in variable pitch: 5 to 5.08 mm (1 part with 2 pitches)
- Temperature-resistant - long term resistance up to 120 deg C provided by high performance Wemid insulation material
- 630 V IEC, 300 V UL
- 24 A IEC, 15 A IEC
- https://youtu.be/GJ7jJkkO8i0
1811530000 Standards
RoHS Compliant|CSA 200039-1815154|cULus File No. E60693 Recognized|EAC Certified|UL 94 V-0 Flammability Rating|UL 1059SKU #2410747Part Number #1811530000UNSPSC39121443UPC04032248290635

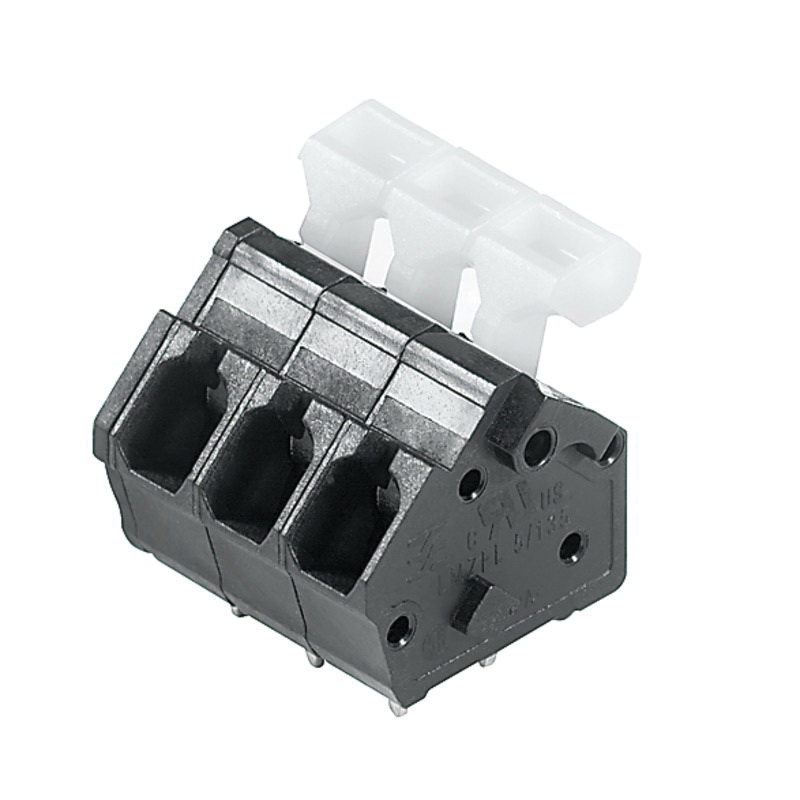

Image provided may only be a representation of final product and may include optional equipment
