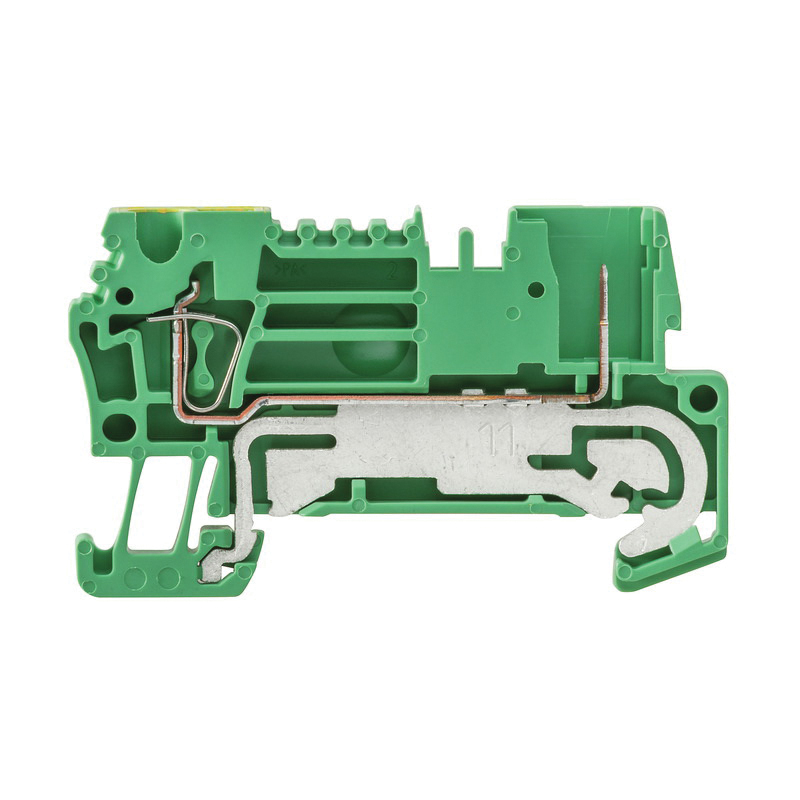

Weidmuller 1815080000 Electrical Terminal
Part Number # 1815080000
SKU # 2320559
$145.00 / 50Each
Typical price:$160.80 / Each
Weidmuller 1815080000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1815080000 |
| SKU #: | 2320559 |
| Dimensions: | 2.283 in H x 0.201 in W x 1.358 in D |
| Type: | 2-Tier Pluggable |
| UNSPSC: | 39121410 |
| UPC: | 04032248369997 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$145.00 / 50Each
Typical price:$160.80 / Each
Quantity:
- Klippon Modular PE Terminal Block, 2-Tier Pluggable, Series: Z Series, 500 V AC, 26 to 12 AWG Wire, 10 mm Wire Strip Length, 2.5 sq-mm Terminal, Snap-Fit Mount, Tension Clamp, -50 to 120 deg C, Wemid, Green/Yellow, 2.283 in H x 0.201 in W x 1.358 in D
1815080000 Application
For hazardous location1815080000 Item Features
- Z-standard with wire cross-sections from 0.05 to 35 mm sq-mm and top entry wire insertion parallel to the screwdriver actuators
- Z-roof with wire cross-sections from 0.13 to 16 mm sq-mm, dimensions reduced by up to 36% and oblique operation direction
- Easy to use thanks to the large clamping space for the wire connections from 0.08 to 35 sq-mm, only one wire can be connected in each clamping unit
- The practical connection aligns the wire insertion direction and the screwdriver operating points, creating a top connection system for which no special tools are needed and which comes with an integrated test point
- UL 94 flammability rating V-0
- 1 number of levels, 2 number of clamping points per level
- Right open sides
- 0.6 x 3.5 mm blade
- 1.33 mOhm volume-resistance
- 1 tension clamp connection, 1 plug-in connection, pluggable
- 6 kV rated impulse withstand voltage
- ZTPE 2.5/2AN/1 type
- https://www.youtube.com/watch?v=DBdk5eXPQb8
1815080000 Standards
CSA Certified|UL File No. E60693 Listed|IEC 61984|IEC 60947-7-1|RoHS CompliantSKU #2320559Part Number #1815080000UNSPSC39121410UPC04032248369997
