1815440000
Weidmuller 1815440000 Electrical Terminal
Part Number # 1815440000
SKU # 2299674
$63.50 / 25Each
Typical price:$70.63 / Each
Weidmuller 1815440000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1815440000 |
| SKU #: | 2299674 |
| Amperage Rating: | 20/24 A |
| Dimensions: | 16 mm H x 15 mm W x 41 mm D |
| Number of Poles: | 3 |
| Series: | Z Series |
| Temperature Rating (Degrees F): | -50 to 120 deg C |
| Type: | 1-Level |
| Wire Size: | 26 to 12 AWG |
| Connection type: | Tension Clamp |
| Country of origin: | CZ |
| Material: | Wemid |
| Mounting type: | Snap-Fit |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04032248370252 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$63.50 / 25Each
Typical price:$70.63 / Each
Quantity:
- Klippon Pluggable Terminal Block, 1-Level, Series: Z Series, 300/500 V, 20/24 A, 3 Pole, 26 to 12 AWG Wire, 10 mm Wire Strip Length, Snap-Fit Mounting, Tension Clamp Connection, -50 to 120 deg C, Wemid, Dark Beige, 16 mm H x 15 mm W x 41 mm D Dimensions
1815440000 Item Features
- Tension clamp technology is a universal contact system for all common conductor connection types
- Its fantastic level of flexibility makes the tension clamp a profitable alternative connection
- 500 V IEC, 300 V UL and CSA
- 24 A IEC and 20 A UL and CSA
1815440000 Standards
RoHS Compliant|cULus Recognized|UL File No. E60693|UL 94 V-0 Flammability Rating|cCSAus File No. 154685-1460993|CE Certified|EAC Certified|DNV-GL Approved|KEMA KEUR ApprovedSKU #2299674Part Number #1815440000UNSPSC39121410UPC04032248370252

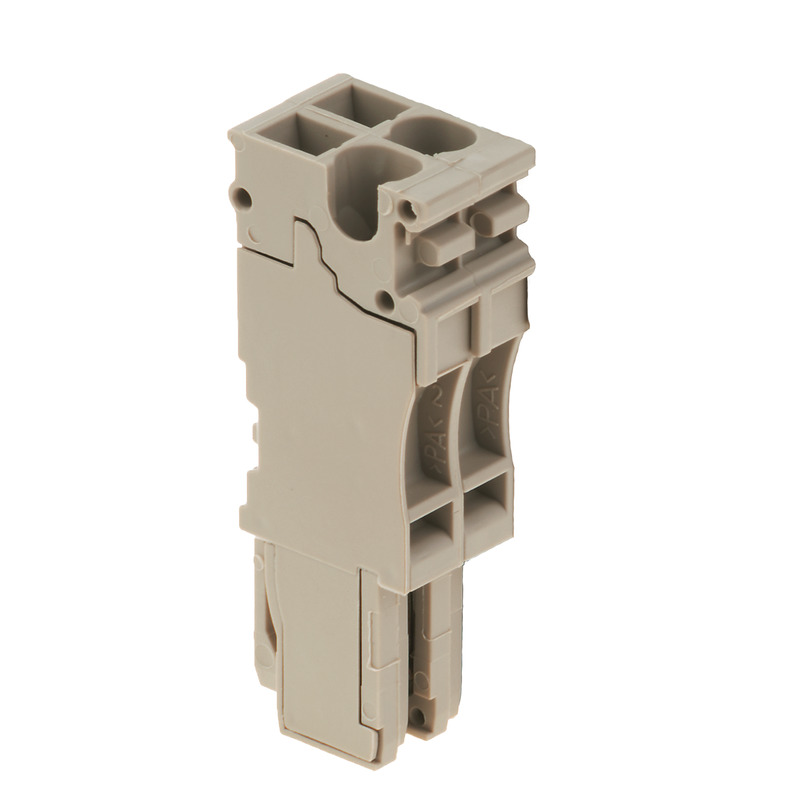

Image provided may only be a representation of final product and may include optional equipment
