1818140500
Weidmuller 1818140500 Control System Cordset
Part Number # 1818140500
SKU # 2424744
$82.02 / Each
Typical price:$86.55 / Each
Weidmuller 1818140500 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1818140500 |
| SKU #: | 2424744 |
| Amperage Rating: | 8 A |
| Conductor Size: | 16 x 0.34 x 0.75 sq-mm |
| Resistance: | 10^12 Ohm |
| Temperature Rating (Degrees F): | -25 to 80 deg C |
| Type: | 19-Pole Halogen-Free Unshielded |
| Country of origin: | CZ |
| Length: | 5 m |
| Material: | Polyurethane |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 32151902 |
| UPC: | 04032248473915 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$82.02 / Each
Typical price:$86.55 / Each
Quantity:

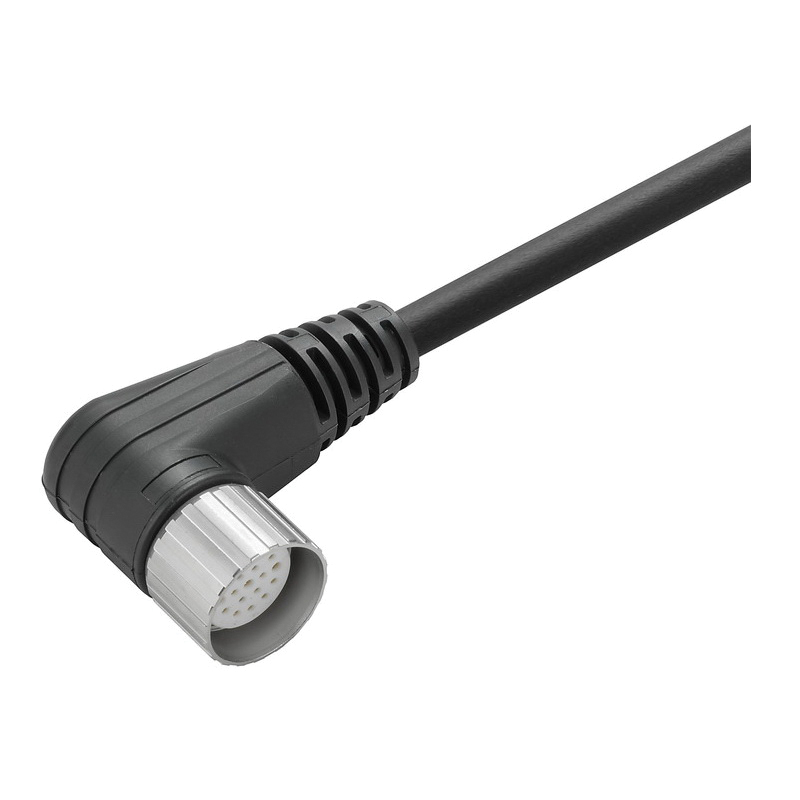

- Weidmuller Sensor/Actuator Cable Assembly, 19-Pole Halogen-Free Unshielded, 150 V, 8 A, M23 Receptacle to Pigtail Connection, 5 m Length, 16 x 0.34 x 0.75 sq-mm Conductor, 10^12 Ohm Resistance, -25 to 80 deg C, Polyurethane, Black
1818140500 Application
For transmitting data or power in various applications and cable carriers1818140500 Item Features
- Molded cable offers connected and tested connection of the plug-in connector to the cable ex-works
- Cables may be exposed to a wide range of conditions, such as humidity, dust, heat, cold, shock or vibration
- M23 cables offer high mating frequency, high current carrying capacity and high density contacts coupled with minimal dimensions
1818140500 Standards
RoHS Compliant|REACH SVHC Lead 7439-92-1|EAC CertifiedSKU #2424744Part Number #1818140500UNSPSC32151902UPC04032248473915
Image provided may only be a representation of final product and may include optional equipment
