Part Number # 1818180500
SKU # 2241789
Image Disclaimers Message
1818180500

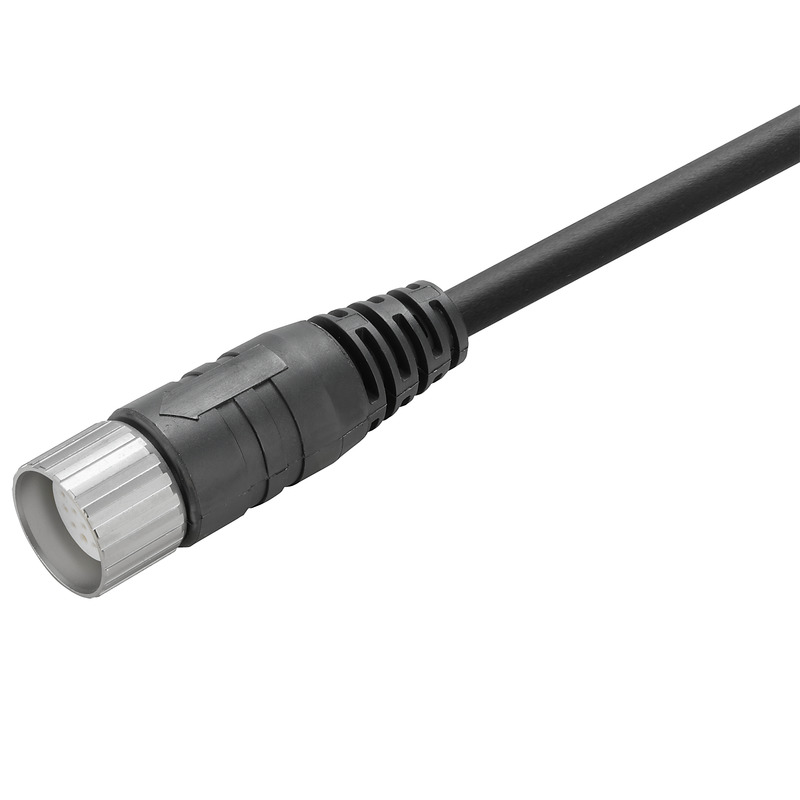

Weidmuller 1818180500 Sensor/Actuator Cable Assembly
Part Number # 1818180500
SKU # 2241789
Weidmuller 1818180500 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1818180500 |
| SKU #: | 2241789 |
| Amperage Rating: | 8 A |
| Conductor Size: | 16 x 0.34 x 0.75 sq-mm |
| Resistance: | 10^12 Ohm |
| Temperature Rating (Degrees F): | -25 to 80 deg C |
| Type: | 19-Pole Halogen-Free Unshielded |
| Color: | Black |
| Country of origin: | DE |
| Length: | 3 m |
| Material: | Polyurethane |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 32151902 |
| UPC: | 04032248473885 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Weidmuller 1818180500 Sensor/Actuator Cable Assembly
Brand: Weidmuller
Part Number: 1818180500
Weidmuller Sensor/Actuator Cable Assembly, 19-Pole Halogen-Free Unshielded, 150 V, 8 A, M23 Straight Female Socket x Bare End Connection, 3 m Length, 16 x 0.34 x 0.75 sq-mm Conductor, 10^12 Ohm Resistance, -25 to 80 deg C, Polyurethane, Black
Additional Description: WEID-1818180500 SAIB-M23-19P-ST-5,0M SENSOR-ACTUATOR CABLE (ASSEMBLED), ONE END WITHOUT CONNECTOR, M23, NUMBER OF POLES: 19, CABLE LENGTH: 5 M, FEMALE SOCKET, STRAIGHT
Catalog Description: Assembled sensor-actuator cable for the connection of sensors or actuators and for data transmission. The plug-in connectors are moulded and tested.
1818180500 Application
For transmitting data or power in various applications and cable carriers1818180500 Includes
01818180500 Item Features
- Molded cable offers connected and tested connection of the plug-in connector to the cable ex-works
- Cables may be exposed to a wide range of conditions, such as humidity, dust, heat, cold, shock or vibration
- M23 cables offer high mating frequency, high current carrying capacity and high density contacts coupled with minimal dimensions
1818180500 Standards
RoHS Compliant|REACH SVHC Lead 7439-92-1|EAC CertifiedSKU #2241789Part Number #1818180500UNSPSC32151902UPC04032248473885
