1820550000

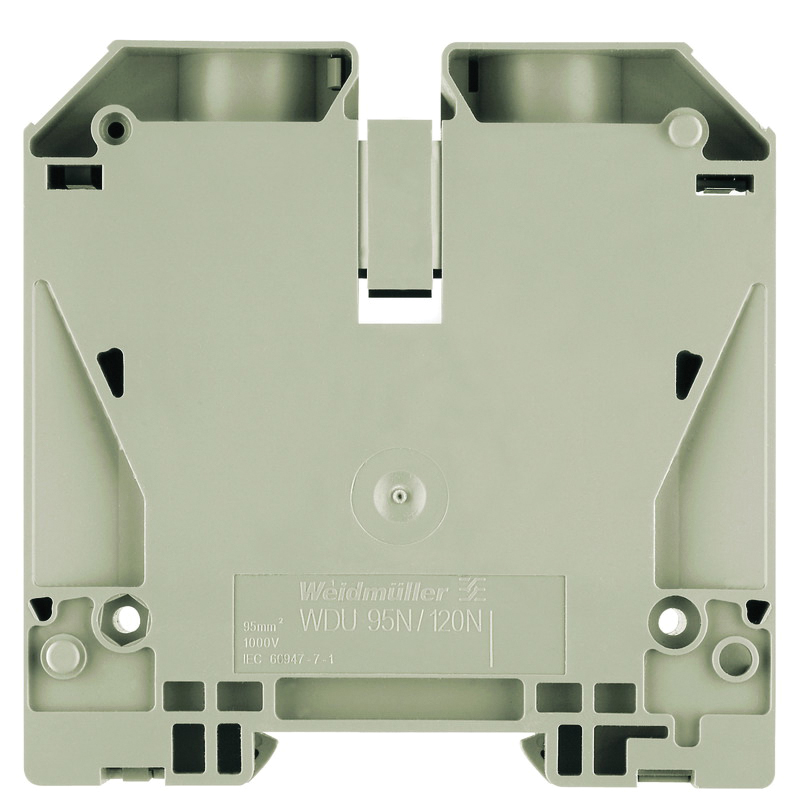

Weidmuller 1820550000 Electrical Terminal
Part Number # 1820550000
SKU # 2163075
$161.40 / 5Each
Typical price:$179.29 / Each
Weidmuller 1820550000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1820550000 |
| SKU #: | 2163075 |
| Amperage Rating: | 269 A |
| Dimensions: | 3.583 in H x 1.063 in W x 3.543 in D |
| Terminal Size: | 95/120 sq-mm |
| Torque Rating: | 12 to 22 N-m |
| Wire Size: | 4 AWG to 250 kcmil |
| UNSPSC: | 39121410 |
| UPC: | 04032248369300 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$161.40 / 5Each
Typical price:$179.29 / Each
Quantity:
- Klippon Feed-Through Terminal Block, 1-Tier, Series: W Series, 1 kV AC, 269 A, 4 AWG to 250 kcmil Wire, 27 mm Wire Strip Length, 95/120 sq-mm Terminal, 12 to 22 N-m, Snap-Fit Mount, Screw, -60 to 130 deg C, Wemid, Dark Beige, 3.583 in H x 1.063 in W x 3.543 in D
1820550000 Item Features
- The W-Series is offered in standard and compact designs and he compact design is impressive with its small size for the design cross-sectional capacity
- The terminal unit consists of hardened steel, for very high contact force and he busbar is made of copper, which gives a low voltage drop
- Uniform size of the terminal block bodies from 2.5 to 10 sq-mm means fewer accessories, lowers the cost, offers logistical advantages and enables simple installation
- Safe operation
- UL 94 flammability rating V-0
- 1 number of potentials, 1 number of levels, 2 number of clamping points per level
- Explosion-tested version, right closed sides
- WDU 95N/120N type
- https://www.youtube.com/watch?v=DBdk5eXPQb8
1820550000 Standards
CSA Certified|UL File No. E60693 Listed|IEC 60947-7-1|RoHS CompliantSKU #2163075Part Number #1820550000UNSPSC39121410UPC04032248369300
Image provided may only be a representation of final product and may include optional equipment
