1820850000
Weidmuller 1820850000 Electrical Terminal
Part Number # 1820850000
SKU # 2295191
$185.20 / 10Each
Typical price:$205.72 / Each
Weidmuller 1820850000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1820850000 |
| SKU #: | 2295191 |
| Dimensions: | 70 mm H x 18.5 mm W x 69.6 mm D |
| Torque Rating: | 3.5 to 6 N-m |
| Wire Size: | 8 AWG |
| UNSPSC: | 39121410 |
| UPC: | 04032248317806 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$185.20 / 10Each
Typical price:$205.72 / Each
Quantity:

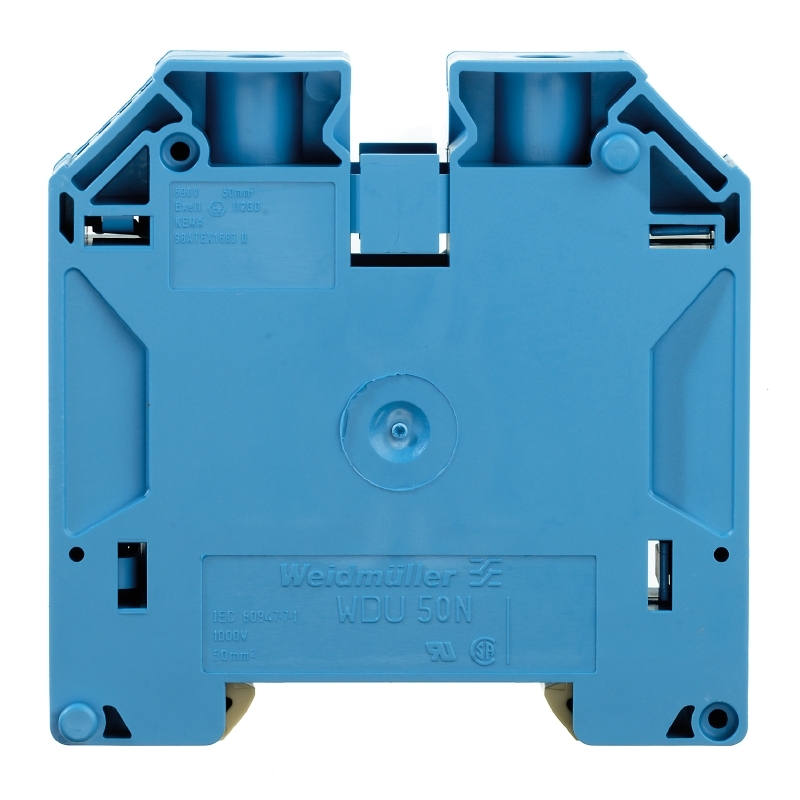

- Klippon Terminal Block, 1-Tier Compact Feed-Through, Series: W Series, 1 kV, 150 A, 8 AWG Wire, 24 mm Wire Strip Length, M6 Terminal, 3.5 to 6 N-m Torque, DIN Rail Mounting, Screw Connection, -60 to 130 deg C, Wemid, Blue, 70 mm H x 18.5 mm W x 69.6 mm D Dimensions
1820850000 Item Features
- The high reliability and variety of designs of the terminal blocks with clamping yoke connections make planning easer and optimizes operational safety
- Klippon connect provides a proven response to a range of different requirements
- 1000 V IEC, 690 V EN 60079-7, 600 V UL and CSA
- 150 A IEC, UL, CSA and 126 A EN 60079-7
1820850000 Standards
RoHS Compliant|UL File No. E60693|CSA 200039-1057876|ATEX DEMKO14ATEX1338U|IECEX IECEXULD14.0005U|UL 94 V-0 Flammability Rating|CE Certified|EAC Certified|KEMAEUR Certified|IEC 60947-7-1SKU #2295191Part Number #1820850000UNSPSC39121410UPC04032248317806
Image provided may only be a representation of final product and may include optional equipment
