Part Number # 1820930000
SKU # 2230686
Image Disclaimers Message
1820930000

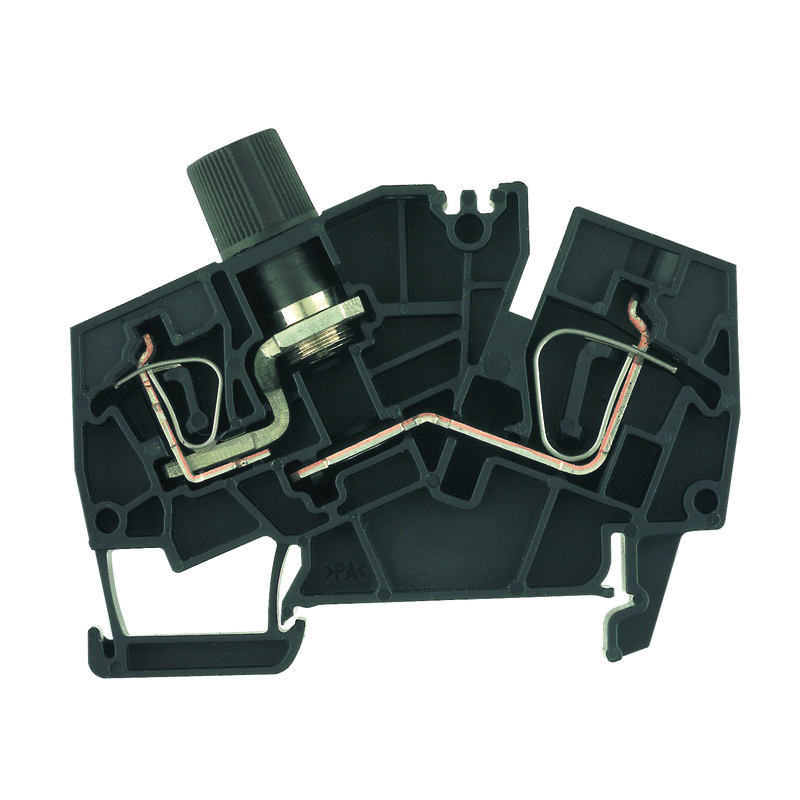

Weidmuller 1820930000 Klippon Fuse Terminal Block
Part Number # 1820930000
SKU # 2230686
Weidmuller 1820930000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1820930000 |
| SKU #: | 2230686 |
| Amperage Rating: | 10 A |
| Dimensions: | 68 mm H x 12.2 mm W x 55 mm D |
| Series: | Z Series |
| Temperature Rating (Degrees F): | -50 to 120 deg C |
| Type: | 1-Tier Roof Style |
| Wire Size: | 26 to 8 AWG |
| Color: | Black |
| Connection type: | Tension Clamp |
| Country of origin: | DE |
| Material: | Wemid |
| Mounting type: | Snap-On |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04032248374182 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Weidmuller 1820930000 Klippon Fuse Terminal Block
Brand: Weidmuller
Part Number: 1820930000
Additional Description: WEID-1820930000 ZSI 6-2 2X2.5/G20 FUSE TERMINAL, TENSION-CLAMP CONNECTION, FUSE CARTRIDGE, WITHOUT LED, FOR PLUG-IN CROSS-CONNECTOR, ONE END WITHOUT CONNECTOR, TENSION-CLAMP CONNECTION, 6 MM, 500 V, 10 A, G-SI. 5 X 20, BLACK
Catalog Description: Terminal block for connecting or joining conductors with permanently secure contact. Hardened steel withstands the mechanical forces, tin-coated copper ensures top conductivity. With removable carrier for a cartridge fuse.
1820930000 Includes
5 x 20 mm Cartridge Fuse1820930000 Item Features
- Tension clamp technology is a universal contact system for all common conductor connection types
- Its fantastic level of flexibility makes the tension clamp a profitable alternative connection
- One end without connector
- 500 V IEC, 300 V UL and CSA
- Without LED
1820930000 Standards
RoHS Compliant|CE Certified|CSA Certified|cULus Recognized|DNV-GL Approved|EAC Certified|UL File No. E60693|UL 94 V-0 Flammability RatingSKU #2230686Part Number #1820930000UNSPSC39121410UPC04032248374182
