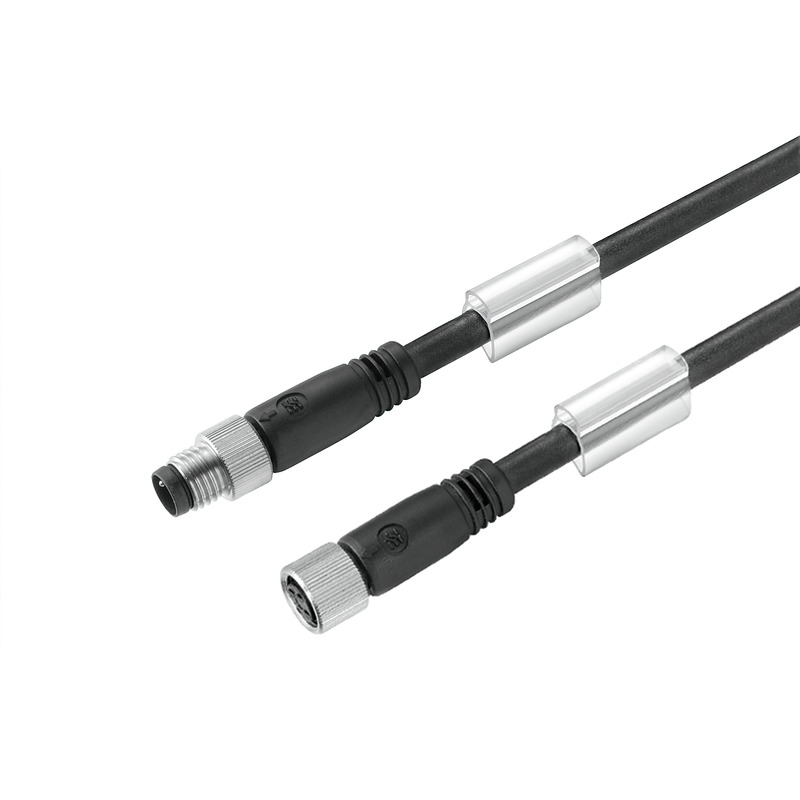

Weidmuller 1824570200 Sensor/Actuator Cable Assembly
Part Number # 1824570200
SKU # 2350257
Weidmuller 1824570200 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1824570200 |
| SKU #: | 2350257 |
| Amperage Rating: | 4 A |
| Conductor Size: | 0.25 sq-mm |
| Resistance: | 10^8 Ohm |
| Temperature Rating (Degrees F): | -25 to 80 deg C |
| Type: | 3-Pole Halogen-Free Unshielded |
| Color: | Black |
| Country of origin: | RO |
| Length: | 2 m |
| Material: | Polyurethane |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 32151902 |
| UPC: | 04032248609017 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Weidmuller 1824570200 Sensor/Actuator Cable Assembly
Brand: Weidmuller
Part Number: 1824570200
Weidmuller Sensor/Actuator Cable Assembly, 3-Pole Halogen-Free Unshielded, 60 V, 4 A, M8 Straight Pin x M8 Straight Socket End Connection, 2 m Length, 0.25 sq-mm Conductor, 10^8 Ohm Resistance, -25 to 80 deg C, Polyurethane, Black
Additional Description: WEID-1824570200 SAIL-M8GM8G-3-2.0U SENSOR-ACTUATOR CABLE (ASSEMBLED), CONNECTING LINE, M8 / M8, NUMBER OF POLES: 3, CABLE LENGTH: 2 M, PIN, STRAIGHT - SOCKET, STRAIGHT
Catalog Description: Assembled sensor-actuator cable for the connection of sensors or actuators and for data transmission. The plug-in connectors are moulded and tested.
1824570200 Application
For transmitting data or power in various applications and cable carriers1824570200 Includes
01824570200 Item Features
- Molded cable offers connected and tested connection of the plug-in connector to the cable ex-works
- Cables may be exposed to a wide range of conditions, such as humidity, dust, heat, cold, shock or vibration
- Developers have focused specifically on this issue and designed a host of different M8 and M12 sensor actuator cables so you are bound to find the solution you need for your application
1824570200 Standards
RoHS Compliant|cULus File No. E307231 Recognized|IEC 61076-2-104|REACH SVHC Lead 7439-92-1|UL 1581|UL/CUL FT1|IEC 60332-1-2|IEC 60332-1-3|IEC 60332-2-2|IEC 60811:404SKU #2350257Part Number #1824570200UNSPSC32151902UPC04032248609017
