1826170000

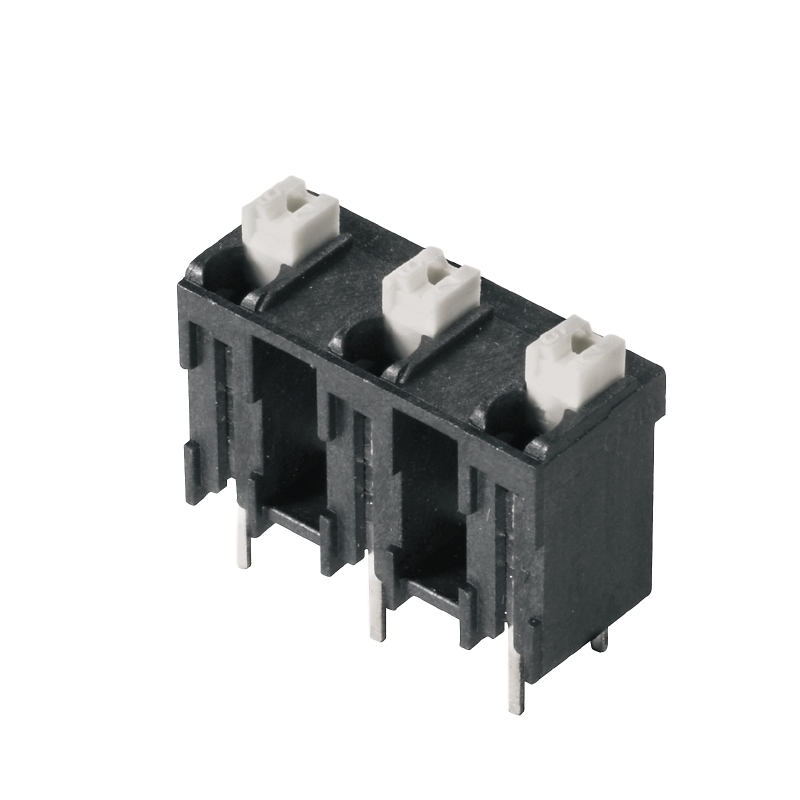

Weidmuller 1826170000 Terminal Block
Part Number # 1826170000
SKU # 2305337
$25.61 / 13Each
Typical price:$29.46 / Each
Weidmuller 1826170000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1826170000 |
| SKU #: | 2305337 |
| Dimensions: | 17.5 mm H x 41.7 mm W x 7.8 mm D, 17.5 mm H x 49.2 mm W x 7.8 mm D |
| Spacing: | 7.5 mm |
| UNSPSC: | 39121443 |
| UPC: | 04032248328871 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$25.61 / 13Each
Typical price:$29.46 / Each
Quantity:
Weidmuller 1826170000 Terminal Block
Brand: Weidmuller
Part Number: 1826170000
Additional Description: WEID-1826170000 LSF-SMT 7.50/06/180 3.5SN BK TU PCB TERMINAL, 7.50 MM, NUMBER OF POLES: 6, CONDUCTOR OUTLET DIRECTION: 180 , PUSH IN WITH ACTUATOR
Catalog Description: PCB terminal block (print terminal, board terminal) for simple and safe data transmission directly to the PCB.
1826170000 Item Features
- PCB terminal for fully automatic assembly in reflow soldering (SMT), with push-in conductor connection system
- Conductor inserted and slider operated in same direction (TOP)
- 800 V IEC, 300 V UL
- 17.5 A IEC, 12 A UL
- https://youtu.be/SfkmyN9mYLA
1826170000 Standards
RoHS Compliant|cULus File No. E60693 Recognized|EAC Certified|VDE Approved|UL 94 V-0 Flammability Rating|UL 1059SKU #2305337Part Number #1826170000UNSPSC39121443UPC04032248328871
Image provided may only be a representation of final product and may include optional equipment
