Part Number # 1826780000
SKU # 2344846
Image Disclaimers Message
1826780000

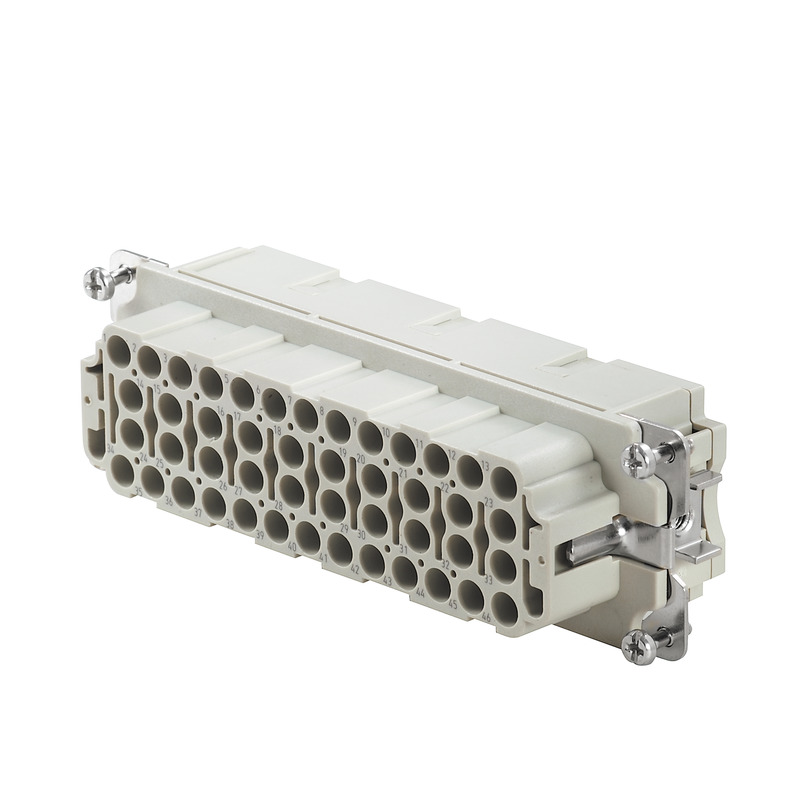

Weidmuller 1826780000 Female Contact Insert
Part Number # 1826780000
SKU # 2344846
Weidmuller 1826780000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1826780000 |
| SKU #: | 2344846 |
| Dimensions: | 36 mm H x 34 mm W x 111 mm D |
| Series: | HDC |
| Specifications: | 500 V, 16 A, SZ 8, 36 mm H of Socket, 111 mm Total L Base |
| Suitable For Use With: | Heavy Duty Connector |
| Temperature Rating (Degrees F): | -40 to 125 deg C |
| Type: | 46-Pole |
| Wire Size: | 20 to 12 AWG |
| Connection type: | Crimp |
| Country of origin: | CZ |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 32151901 |
| UPC: | 04032248330188 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Weidmuller 1826780000 Female Contact Insert
Brand: Weidmuller
Part Number: 1826780000
Weidmuller Female Contact Insert, 46-Pole, Series: HDC, 20 to 12 AWG Wire, Crimp Connection, For Use With: Heavy Duty Connector, -40 to 125 deg C, Specifications: 500 V, 16 A, SZ 8, 36 mm H of Socket, 111 mm Total L Base, 36 mm H x 34 mm W x 111 mm D Dimensions
Additional Description: WEID-1826780000 HDC HEE 46 FC CONTACT INSERT (INDUSTRY PLUG-IN CONNECTORS), FEMALE, 500 V, 16 A, NUMBER OF POLES: 46, CRIMP CONNECTION, SIZE: 8
Catalog Description: Insert for industrial plug-in connectors, consisting of contact element and insulating body.
1826780000 Includes
01826780000 Standards
RoHS Compliant|UL File No. E92202|UL 94 V-0 Flammability Rating|CSA Certified|cULus Recognized|EAC CertifiedSKU #2344846Part Number #1826780000UNSPSC32151901UPC04032248330188
