1826790000

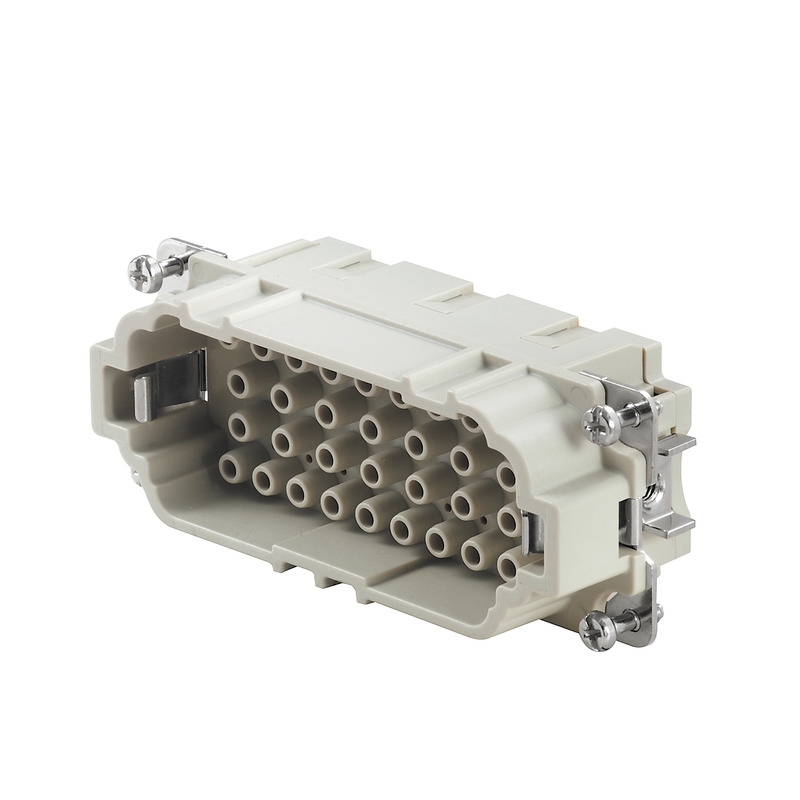

Weidmuller 1826790000 Contact Insert
Part Number # 1826790000
SKU # 2310923
Weidmuller 1826790000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1826790000 |
| SKU #: | 2310923 |
| Dimensions: | 33 mm H x 34 mm W x 84.5 mm D, 36 mm H x 34 mm W x 84.5 mm D |
| Number of Positions: | 32+Ground |
| Series: | HEE Series |
| UNSPSC: | 32151901 |
| UPC: | 04032248330195 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Weidmuller 1826790000 Contact Insert
Brand: Weidmuller
Part Number: 1826790000
Weidmuller Contact Insert, Series: HEE Series, 32+Ground Positions, 20 to 12 AWG Wire, Crimp/Male, For Use With: RockStar Heavy Duty Connector, -40 to 125 deg C, SZ 6, 500 V, 16 A, PC Glass Fiber Reinforced, 33 mm H x 34 mm W x 84.5 mm D
Additional Description: WEID-1826790000 HDC HEE 32 MC CONTACT INSERT (INDUSTRY PLUG-IN CONNECTORS), MALE, 500 V, 16 A, NUMBER OF POLES: 32, CRIMP CONNECTION, SIZE: 6
Catalog Description: Insert for industrial plug-in connectors, consisting of contact element and insulating body.
1826790000 Item Features
- The HEE series features high density contacts and is designed on the basis of the established HE inserts
- The wire connection level is designed for crimp contacts
- The proven crimp connection method has been in standard use for decades
- Crimp contacts are not included in the scope of delivery of inserts
1826790000 Standards
RoHS Compliant|CSA Certified|UL 94 V-0 Flammable Rating|DIN EN 61984|cULus Recognized|EAC Certified|UL File No. E92202SKU #2310923Part Number #1826790000UNSPSC32151901UPC04032248330195
Image provided may only be a representation of final product and may include optional equipment
