1826800000

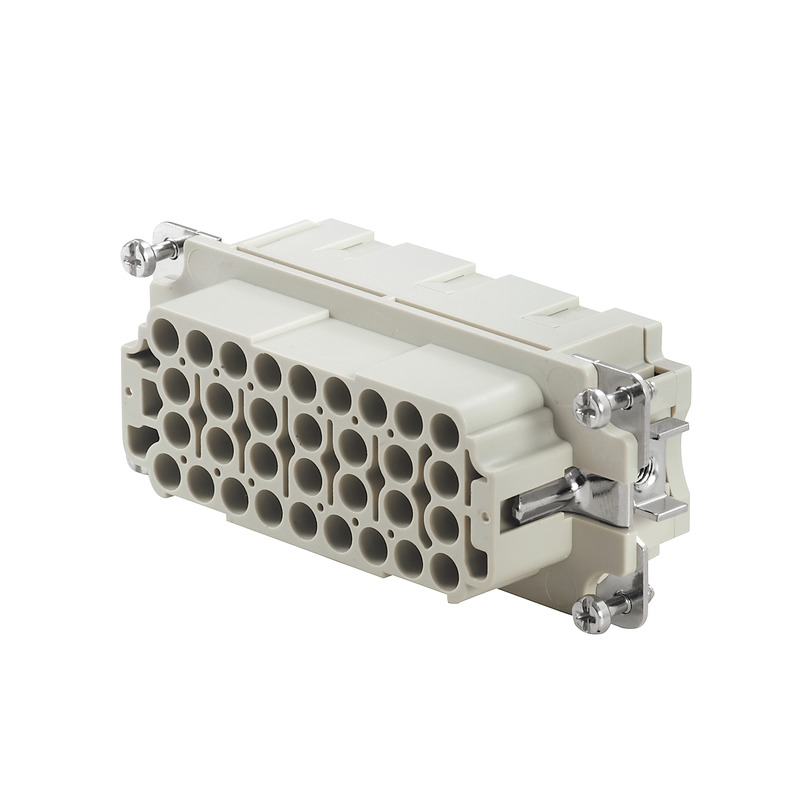

Weidmuller 1826800000 Electrical Plug
Part Number # 1826800000
SKU # 2310924
$20.14 / Each
Typical price:$23.19 / Each
Weidmuller 1826800000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1826800000 |
| SKU #: | 2310924 |
| Dimensions: | 33 mm H x 34 mm W x 64 mm D |
| Number of Positions: | 18+Ground |
| Series: | HEE Series |
| Specifications: | SZ 4, 500 V, 16 A |
| UNSPSC: | 32151901 |
| UPC: | 04032248330201 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$20.14 / Each
Typical price:$23.19 / Each
Quantity:
- Weidmuller Contact Insert, Series: HEE Series, 18+Ground Positions, 20 to 12 AWG Wire, Crimp/Male, For Use With: RockStar Heavy Duty Connector, -40 to 125 deg C, SZ 4, 500 V, 16 A, PC Glass Fiber Reinforced, 33 mm H x 34 mm W x 64 mm D
1826800000 Item Features
- The HEE series features high density contacts and is designed on the basis of the established HE inserts
- The wire connection level is designed as a crimp contact
- The established crimp connection has been used as a standard for decades
- Crimp contacts are not delivered with the inserts
1826800000 Standards
RoHS Compliant|CSA Certified|UL 94 V-0 Flammable Rating|DIN EN 61984|cULus Recognized|EAC Certified|UL File No. E92202SKU #2310924Part Number #1826800000UNSPSC32151901UPC04032248330201
Image provided may only be a representation of final product and may include optional equipment
