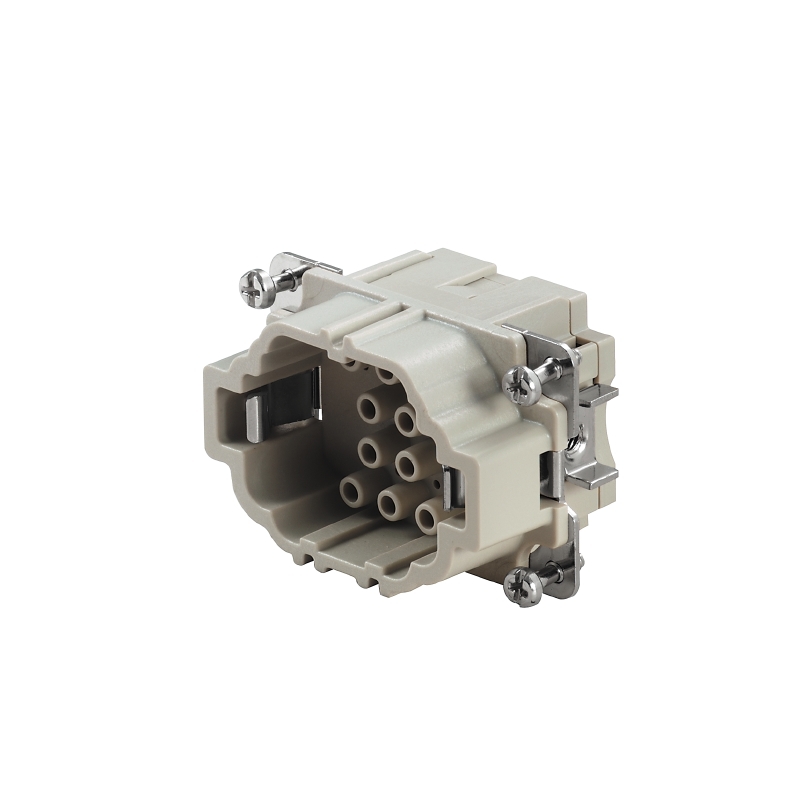

Weidmuller 1826830000 HEE Series Contact Insert
Part Number # 1826830000
SKU # 2382692
Weidmuller 1826830000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1826830000 |
| SKU #: | 2382692 |
| Dimensions: | 33 mm H x 34 mm W x 51 mm D |
| Number of Positions: | 10+Ground |
| Series: | HEE Series |
| Specifications: | SZ 3, 500 V, 16 A |
| Suitable For Use With: | RockStar Heavy Duty Connector, RockStar® Heavy Duty Connector |
| Temperature Rating (Degrees F): | -40 to 125 deg C |
| Wire Size: | 20 to 12 AWG |
| Connection type: | Crimp/Male |
| Country of origin: | CZ |
| Material: | PC Glass Fiber Reinforced |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 32151901 |
| UPC: | 04032248330232 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Weidmuller 1826830000 HEE Series Contact Insert
Brand: Weidmuller
Part Number: 1826830000
Weidmuller Contact Insert, Series: HEE Series, 10+Ground Positions, 20 to 12 AWG Wire, Crimp/Male, For Use With: RockStar Heavy Duty Connector, -40 to 125 deg C, SZ 3, 500 V, 16 A, PC Glass Fiber Reinforced, 33 mm H x 34 mm W x 51 mm D
Additional Description: WEID-1826830000 HDC HEE 10 MC CONTACT INSERT (INDUSTRY PLUG-IN CONNECTORS), MALE, 500 V, 16 A, NUMBER OF POLES: 10, CRIMP CONNECTION, SIZE: 3
Catalog Description: Insert for industrial plug-in connectors, consisting of contact element and insulating body.
1826830000 Includes
01826830000 Item Features
- The HEE series features high density contacts and is designed on the basis of the established HE inserts
- The wire connection level is designed as a crimp contact
- The established crimp connection has been used as a standard for decades
- Crimp contacts are not delivered with the inserts
1826830000 Standards
RoHS Compliant|CSA Certified|UL 94 V-0 Flammable Rating|DIN EN 61984|cULus Recognized|EAC Certified|UL File No. E92202SKU #2382692Part Number #1826830000UNSPSC32151901UPC04032248330232
