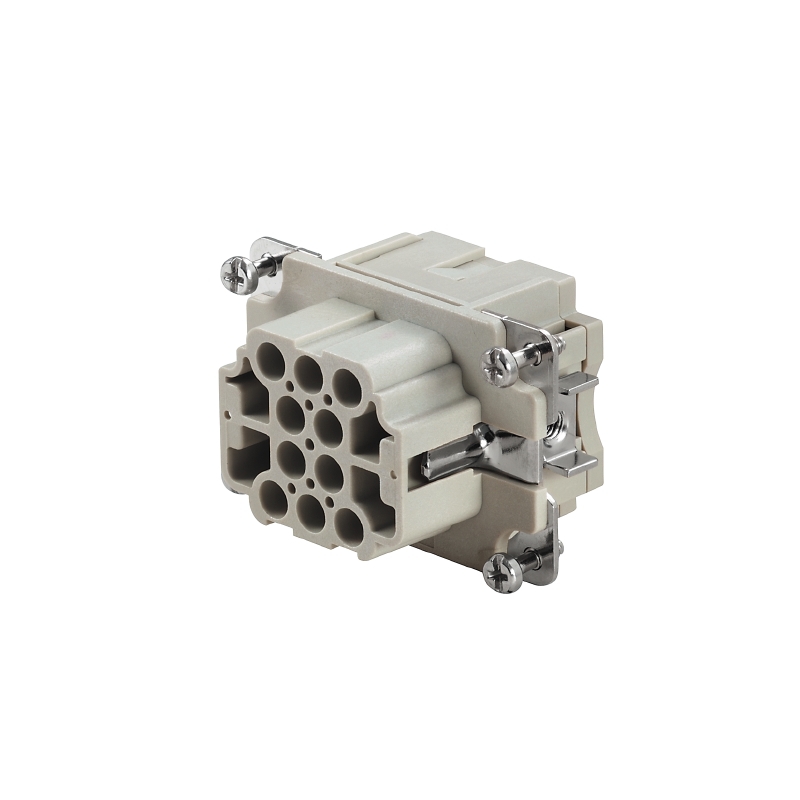

Weidmuller 1826840000 Contact Insert
Part Number # 1826840000
SKU # 2389048
Weidmuller 1826840000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1826840000 |
| SKU #: | 2389048 |
| Dimensions: | 36 mm H x 34 mm W x 51 mm D |
| Number of Positions: | 10+Ground |
| Series: | HEE Series |
| Specifications: | SZ 3, 500 V, 16 A |
| Suitable For Use With: | RockStar Heavy Duty Connector, RockStar® Heavy Duty Connector |
| Temperature Rating (Degrees F): | -40 to 125 deg C |
| Wire Size: | 20 to 12 AWG |
| Connection type: | Crimp/Female |
| Country of origin: | CZ |
| Material: | PC Glass Fiber Reinforced |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 32151901 |
| UPC: | 04032248330249 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Weidmuller 1826840000 Contact Insert
Brand: Weidmuller
Part Number: 1826840000
Weidmuller Contact Insert, Series: HEE Series, 10+Ground Positions, 20 to 12 AWG Wire, Crimp/Female, For Use With: RockStar Heavy Duty Connector, -40 to 125 deg C, SZ 3, 500 V, 16 A, PC Glass Fiber Reinforced, 36 mm H x 34 mm W x 51 mm D
Additional Description: WEID-1826840000 HDC HEE 10 FC CONTACT INSERT (INDUSTRY PLUG-IN CONNECTORS), FEMALE, 500 V, 16 A, NUMBER OF POLES: 10, CRIMP CONNECTION, SIZE: 3
Catalog Description: Insert for industrial plug-in connectors, consisting of contact element and insulating body.
1826840000 Includes
01826840000 Item Features
- The HEE series features high density contacts and is designed on the basis of the established HE inserts
- The wire connection level is designed as a crimp contact
- The established crimp connection has been used as a standard for decades
- Crimp contacts are not delivered with the inserts
1826840000 Standards
RoHS Compliant|CSA Certified|UL 94 V-0 Flammable Rating|DIN EN 61984|cULus Recognized|EAC Certified|UL File No. E92202SKU #2389048Part Number #1826840000UNSPSC32151901UPC04032248330249
