Weidmuller 1828730000 SAI Sensor/Actuator Passive Distributor, 10 to 30 VDC, 6 A, 3 Poles
Part Number # 1828730000
SKU # 2359888

1828730000
Weidmuller 1828730000 SAI Sensor/Actuator Passive Distributor, 10 to 30 VDC, 6 A, 3 Poles
Part Number # 1828730000
SKU # 2359888
Weidmuller 1828730000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1828730000 |
| SKU #: | 2359888 |
| Cable Entry Size: | M8 |
| Depth: | 113 mm |
| Height: | 23 mm |
| UNSPSC: | 32151902 |
| UPC: | 04032248335374 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Weidmuller 1828730000 SAI Sensor/Actuator Passive Distributor, 10 to 30 VDC, 6 A, 3 Poles
Brand: Weidmuller
Part Number: 1828730000
Weidmuller Sensor/Actuator Passive Distributor, Series: SAI, 10 to 30 VDC, 6 A, 6 Outlets, 3 Pole, IP68 Enclosure, NEMA 6P NEMA Rating, M8 Cable Entry, Pocan, Gray, 23 mm Height, 24 mm Width, 113 mm Depth
Additional Description: WEID-1828730000 SAI-06L-VP12-3A-M08L-PNP SENSOR-ACTUATOR PASSIVE DISTRIBUTOR (WITHOUT CABLE), COMPLETE MODULE, WITH M12 OUTLET, 8-POLE, A-CODED, NUMBER OF CONTACT SOCKETS: 6, NUMBER OF POLES: 3, M8 CABLE
Catalog Description: Distributor for bundling several input signals on one central plug-in connector.
1828730000 Includes
LED and LED Initiator1828730000 Item Features
- This range of products is characterized by the marking options at all connection positions
- Furthermore, this distributor is shorter than many conventional M8 designs
- Very narrow, short and flat M8 distributor
- The M8 line is equipped with transverse holes
- Even the 4-way distributor with 8-pole M12 has adequately large markers at all M8 connection positions
- Without cable
1828730000 Standards
RoHS Compliant|cULus File No. E92202 Recognized|REACH SVHC Lead 7439-92-1|UL 94 V-0 Flammability RatingSKU #2359888Part Number #1828730000UNSPSC32151902UPC04032248335374

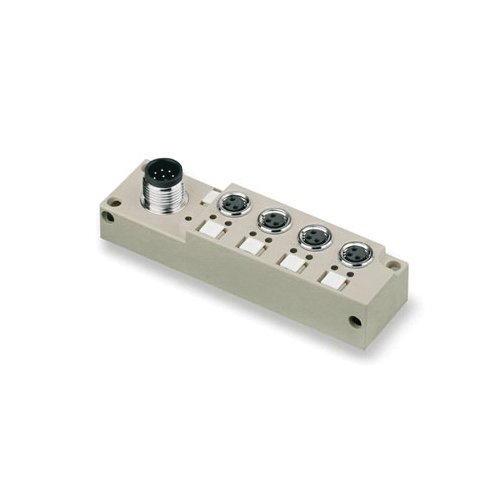

Image provided may only be a representation of final product and may include optional equipment
