1828740000
Weidmuller 1828740000 Electrical Receptacle
Part Number # 1828740000
SKU # 2307893
$66.64 / Each
Typical price:$70.31 / Each
Weidmuller 1828740000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1828740000 |
| SKU #: | 2307893 |
| Dimensions: | 29.36 mm H x 20.32 mm W x 23.67 mm D |
| Temperature Rating (Degrees F): | 100 deg C |
| UNSPSC: | 32151902 |
| UPC: | 04032248335381 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$66.64 / Each
Typical price:$70.31 / Each
Quantity:
- Weidmuller OMNIMATE Signal PCB Plug-In Connector, Board Connection, Series: BL/SL 5.08 Series, 4 Positions, 2 Rows, 5.08 mm Pitch/Row Spacing, PCB Mounting, 300/400 V, Male Header Connector, THT/THR Solder Termination, CuSn Contact, LCP GF Housing Material, 100 deg C, Black, 29.36 mm H x 20.32 mm W x 23.67 mm D Dimensions
1828740000 Item Features
- High temperature-resistant, double level, laterally offset, male connector with flange
- 1.5 mm solder pin is suitable for reflow soldering
- 3.2 mm solder pin suitable for reflow and wave soldering
- The pin headers provide space for labelling and can be coded
- 400 V IEC, 300 V UL
- https://youtu.be/Ifq_mdNjF4g
1828740000 Standards
RoHS Compliant|IEC 60664-1, IEC 61984|UL File No. E60693 Recognized|UL 1059|CSA File No. 200039-1121690|UL 94 V-0 Flammability Rating|EAC CertifiedSKU #2307893Part Number #1828740000UNSPSC32151902UPC04032248335381

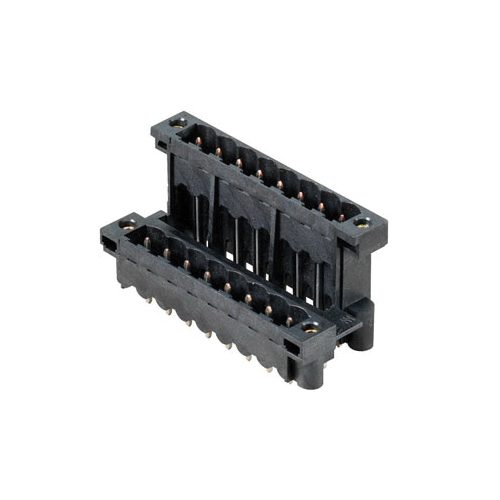

Image provided may only be a representation of final product and may include optional equipment
