1833600000
Weidmuller 1833600000 Electrical Terminal
Part Number # 1833600000
SKU # 2367228
$350.50 / 50Each
Typical price:$389.50 / Each
Weidmuller 1833600000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1833600000 |
| SKU #: | 2367228 |
| Dimensions: | 72.5 mm H x 5.1 mm W x 66 mm D |
| Type: | 2-Tier Compact |
| UNSPSC: | 39121410 |
| UPC: | 04032248996926 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$350.50 / 50Each
Typical price:$389.50 / Each
Quantity:

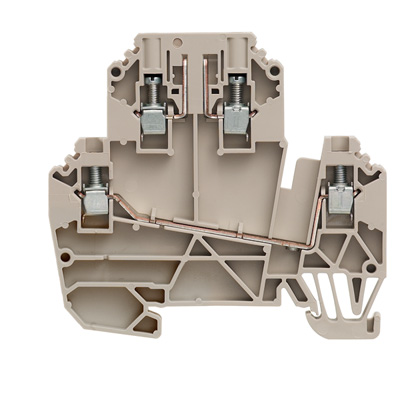

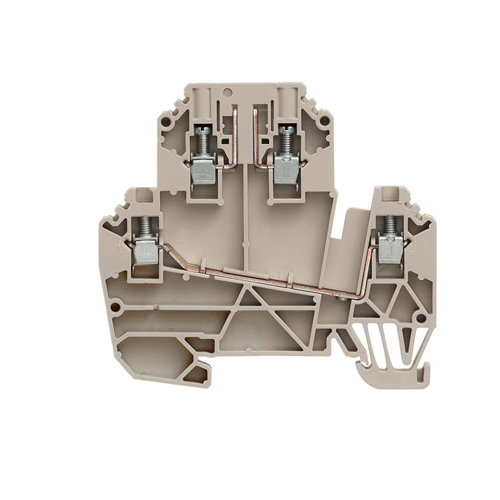

- Klippon Test Disconnect Terminal Block, 2-Tier Compact, Series: W Series, 300/690 V, 20/24 A, 30 to 12 AWG Wire, 8 mm Wire Strip Length, M3 Terminal, 0.5 to 0.6 N-m Torque, Snap-Fit Mounting, Screw Connection, -50 to 120 deg C, Wemid, Dark Beige, 72.5 mm H x 5.1 mm W x 66 mm D Dimensions
1833600000 Item Features
- The high reliability and variety of designs of the terminal blocks with clamping yoke connections make planning easer and optimizes operational safety
- Klippon connect provides a proven response to a range of different requirements
- 690 V IEC, 300 V UL and CSA
- 24 A IEC, 20 A UL and CSA
- Without isolator
1833600000 Standards
RoHS Compliant|UL 94 V-0 Flammability Rating|CSA 200039-1057876|EAC CertifiedSKU #2367228Part Number #1833600000UNSPSC39121410UPC04032248996926
Image provided may only be a representation of final product and may include optional equipment
