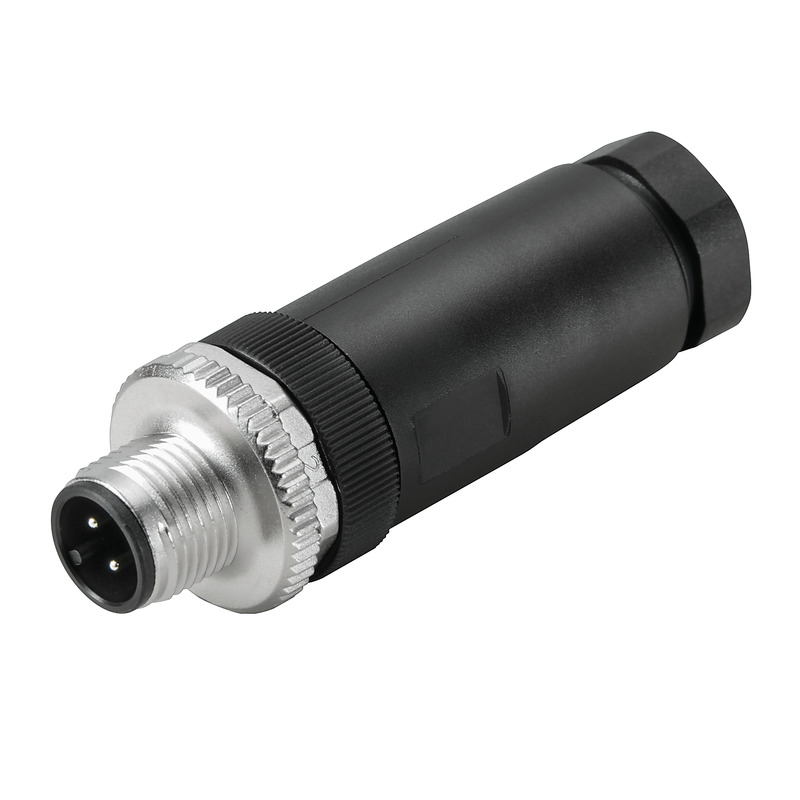

Weidmuller 1836970000 Plug-In Connector
Weidmuller 1836970000 Plug-In Connector
Part #:1836970000
SKU #: 2268281
$15.05/EA
Key Features
Part #:1836970000
SKU #: 2268281
Brand: Weidmuller
Connector Size: M12
Connector Type: Male Pin
Dimensions: 20 mm Dia x 62 mm L
Series: SAI
Specifications: 8-Pole, 2 A, 0.14 to 0.5 sq-mm Connection Cross-Section, 6 to 8 mm Dia Cable, >/= 50 Plugging Cycles, PG9 Cable Gland, 3 Pollution Severity, Die Cast Zinc Threaded Ring, IP67 Protection
$15.05/EA
Specifications
Brand: Weidmuller
Connector Size: M12
Connector Type: Male Pin
Dimensions: 20 mm Dia x 62 mm L
Series: SAI
Specifications: 8-Pole, 2 A, 0.14 to 0.5 sq-mm Connection Cross-Section, 6 to 8 mm Dia Cable, >/= 50 Plugging Cycles, PG9 Cable Gland, 3 Pollution Severity, Die Cast Zinc Threaded Ring, IP67 Protection
Temperature Rating (Degrees F): -40 to 85 deg C
Terminal Type: Screw
Type: A-Coded Round Straight
Voltage Rating: 60 V
Housing material: PA
Insulation resistance: 100 MOhm
Mounting type: Free Hanging/In-Line
UNSPSC: 32151902
UPC: 04032248345229
Weidmuller 1836970000 Plug-In Connector
Additional Description: WEID-1836970000 SAIS-8/9 ROUND PLUG (FIELD CUSTOMISABLE), PIN, STRAIGHT, SCREW CONNECTION, M12, 0.14 MM, 0.5 MM, 6 - 8 MM, NUMBER OF POLES: 8, SHIELD CONNECTION: NO
Catalog Description: Circular connectors for the individual assembly of conductors. Space-saving design.
