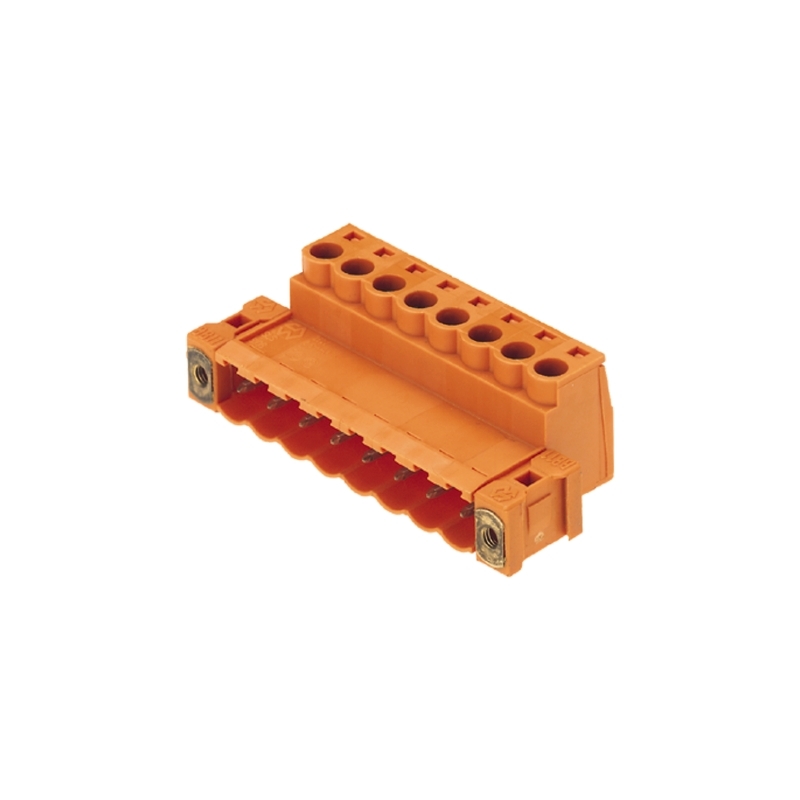

Weidmuller 1846420000 Telecommunication Connector
Part Number # 1846420000
SKU # 2313989
1846420000
Weidmuller 1846420000 Telecommunication Connector
Part Number # 1846420000
SKU # 2313989
$246.96 / 36Each
Typical price:$284.29 / Each
Weidmuller 1846420000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1846420000 |
| SKU #: | 2313989 |
| Connector Type: | Male Plug |
| Dimensions: | 15.2 mm H x 22.3 mm D |
| Number of Positions: | 9 |
| Series: | BL/SL 5.08 Series |
| Temperature Rating (Degrees F): | -50 to 100 deg C |
| Termination Type: | Clamping Yoke |
| Type: | Wire Connection |
| Contact material: | CuSn |
| Housing material: | PBT |
| Insulation resistance: | >/=10^8 Ohm |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 31163101 |
| UPC: | 04032248362721 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$246.96 / 36Each
Typical price:$284.29 / Each
Quantity:
- Weidmuller OMNIMATE Signal PCB Plug-In Connector, Wire Connection, Series: BL/SL 5.08 Series, 9 Positions, 1 Row, 5.08 mm Pitch/Row Spacing, DIN Rail Mounting, 26 to 12 AWG Wire, 300/400 V, Male Plug Connector, Clamping Yoke Termination, CuSn Contact, >/=10^8 Ohm Insulation Resistance, PBT Housing Material, -50 to 100 deg C, Orange, 15.2 mm H x 22.3 mm D Dimensions
1846420000 Item Features
- Male plugs with clamping yoke screw wire connect system
- The male plugs provide space for labeling and can be coded
- 400 V IEC, 300 V UL
- https://youtu.be/Ifq_mdNjF4g
1846420000 Standards
RoHS Compliant|IEC Certified|CSA Certified|DIN 5264-A|ETIM 6.0 EC002638|ETIM 7.0 EC002638|eClass 9.0 27-44-03-09|eClass 9.1 27-44-03-09|eClass 10.0 27-44-03-09|EAC Certified|UL 1059|REACH SVHC Lead 7439-92-1|UL 94 V-0 Flammability RatingSKU #2313989Part Number #1846420000UNSPSC31163101UPC04032248362721
Image provided may only be a representation of final product and may include optional equipment
