Weidmuller 1846500000 Telecommunication Connector
Part Number # 1846500000
SKU # 2314001
1846500000
Weidmuller 1846500000 Telecommunication Connector
Part Number # 1846500000
SKU # 2314001
$239.40 / 18Each
Typical price:$275.62 / Each
Weidmuller 1846500000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1846500000 |
| SKU #: | 2314001 |
| Connector Type: | Male Plug |
| Number of Positions: | 2 |
| Series: | BL/SL 5.08 Series |
| Temperature Rating (Degrees F): | -50 to 100 deg C |
| Termination Type: | Tension Clamp |
| Type: | Wire Connection |
| Wire Size: | 26 to 12 AWG |
| Contact material: | Copper alloy |
| Country of origin: | SK |
| Housing material: | PBT |
| Insulation resistance: | >=10^8 Ohm |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 31163101 |
| UPC: | 04032248362806 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$239.40 / 18Each
Typical price:$275.62 / Each
Quantity:
- Weidmuller OMNIMATE Signal PCB Plug-In Connector, Wire Connection, Series: BL/SL 5.08 Series, 2 Positions, 1 Row, 5.08 mm Pitch/Row Spacing, 26 to 12 AWG Wire, 300/400 V, Male Plug Connector, Tension Clamp Termination, Copper Alloy Contact, >=10^8 Ohm Insulation Resistance, PBT Housing Material, -50 to 100 deg C, Orange
1846500000 Item Features
- Male plugs with tension clamp wire connection
- The male plugs provide space for labelling and can be coded
- 400 V IEC, 300V UL
- https://youtu.be/Ifq_mdNjF4g
1846500000 Standards
RoHS Compliant|UL File No. E60693 Recognized|IEC 60664-1, IEC 61984|CSA Certified|UL 94 V-0 Flammability Rating|CSA File No. 200039-1461395|EAC CertifiedSKU #2314001Part Number #1846500000UNSPSC31163101UPC04032248362806

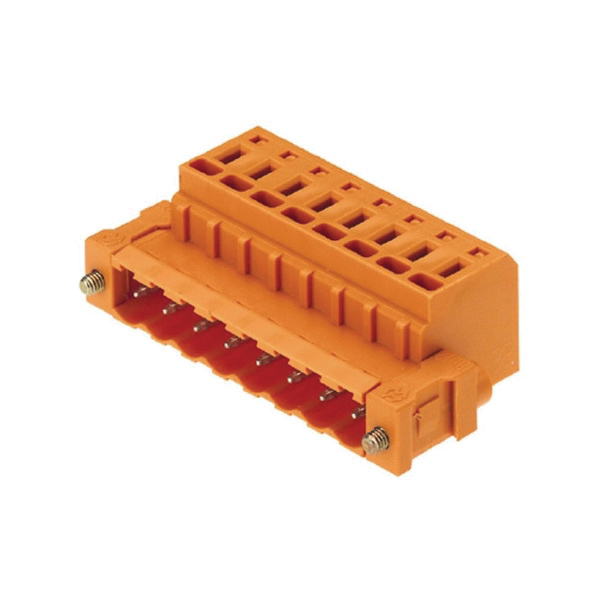

Image provided may only be a representation of final product and may include optional equipment
