1850890000
Weidmuller 1850890000 Terminal Blocks
Part Number # 1850890000
SKU # 2432759
$224.56 / 36Each
Typical price:$258.52 / Each
Weidmuller 1850890000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1850890000 |
| SKU #: | 2432759 |
| Connector Type: | Male Header |
| Dimensions: | 0.535 in H x 1.26 in D |
| Number of Positions: | 3 |
| Series: | BU/SU 10.16HP Series |
| Temperature Rating (Degrees F): | -50 to 120 deg C |
| Termination Type: | THT Solder |
| Type: | Board Connection High Performance |
| Contact material: | Copper alloy |
| Country of origin: | DE |
| Housing material: | PBT GF |
| Mounting type: | PCB |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04032248381784 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$224.56 / 36Each
Typical price:$258.52 / Each
Quantity:
- Weidmuller OMNIMATE Power PCB Plug-In Connector, Board Connection High Performance, Series: BU/SU 10.16HP Series, 3 Positions, 1 Row, 10.16 mm Pitch/Row Spacing, PCB Mounting, 300/1000 V, Male Header Connector, THT Solder Termination, Copper Alloy Contact, PBT GF Housing Material, -50 to 120 deg C, Black, 0.535 in H x 1.26 in D Dimensions
1850890000 Item Features
- Single-row, high current male header, for side by side mounting without sacrificing any poles or with patented flange for fast locking without tools
- Maximum connection and operating reliability thanks to a mating profile that prevents incorrect connection, with unique coding diversity, additional fastening and integrable positioning aid
- 3.5 mm pin length is optimized for wave soldering, plug-in direction 180 deg to solder pins
- 1000 V IEC, 300 V UL
- https://youtu.be/XJZN4Q-uXbs
1850890000 Standards
RoHS Compliant|IEC 60664-1, IEC 61984|cULus File No. E60693 Recognized|UL 1059|CSA Certified|UL 94 V-0 Flammability Rating|EAC CertifiedSKU #2432759Part Number #1850890000UNSPSC39121410UPC04032248381784

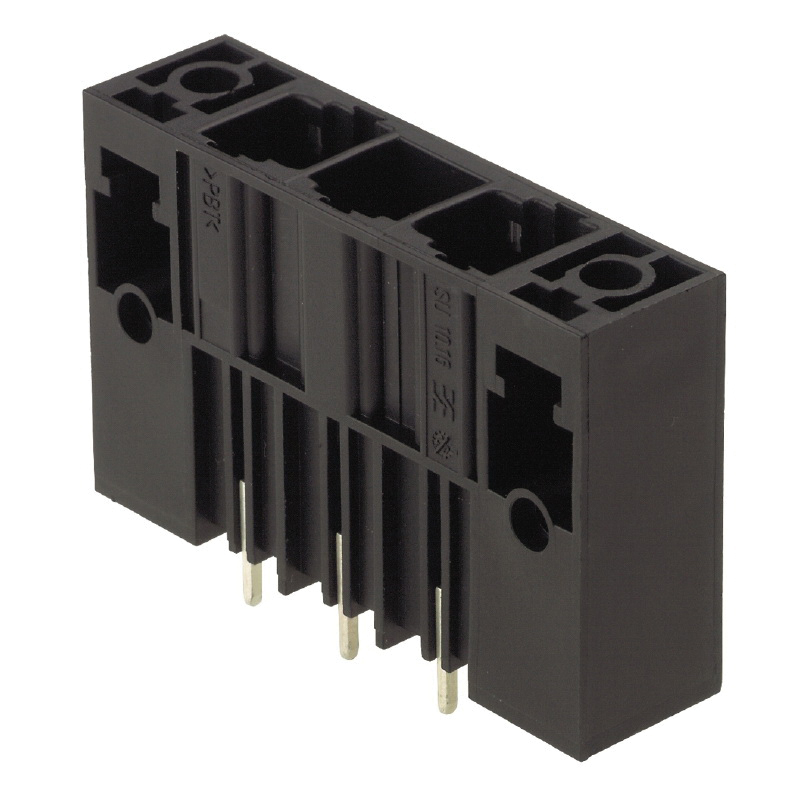

Image provided may only be a representation of final product and may include optional equipment
