1852750000
Weidmuller 1852750000 Electrical Receptacle
Part Number # 1852750000
SKU # 2244280
Weidmuller 1852750000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1852750000 |
| SKU #: | 2244280 |
| Dimensions: | 0.441 in H x 1.102 in D |
| Series: | BV/SV 7.62 Series |
| UNSPSC: | 32151902 |
| UPC: | 04032248386871 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Weidmuller 1852750000 Electrical Receptacle
Brand: Weidmuller
Part Number: 1852750000

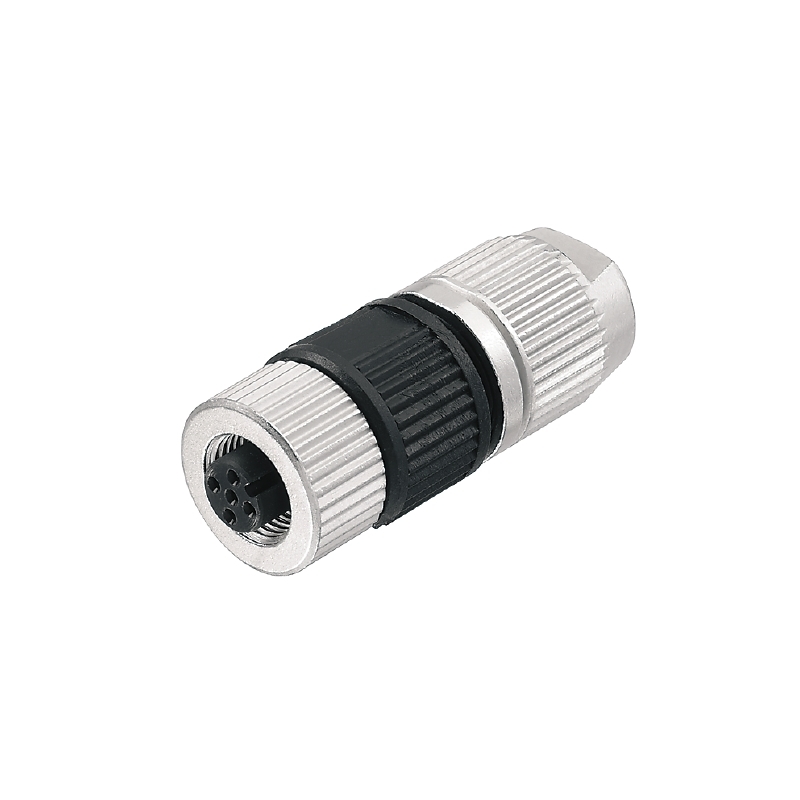

Additional Description: WEID-1852750000 SAIB-4-IDC (0,75) M12 ROUND PLUG (FIELD CUSTOMISABLE), FEMALE SOCKET, STRAIGHT, INSULATION DISPLACEMENT CONNECTION, M12, 0.34 MM, 0.75 MM, 5.5 - 8 MM, NUMBER OF POLES: 4, SHIELD CONNECTION: NO
Catalog Description: Circular connectors for the individual assembly of conductors. Space-saving design.
1852750000 Item Features

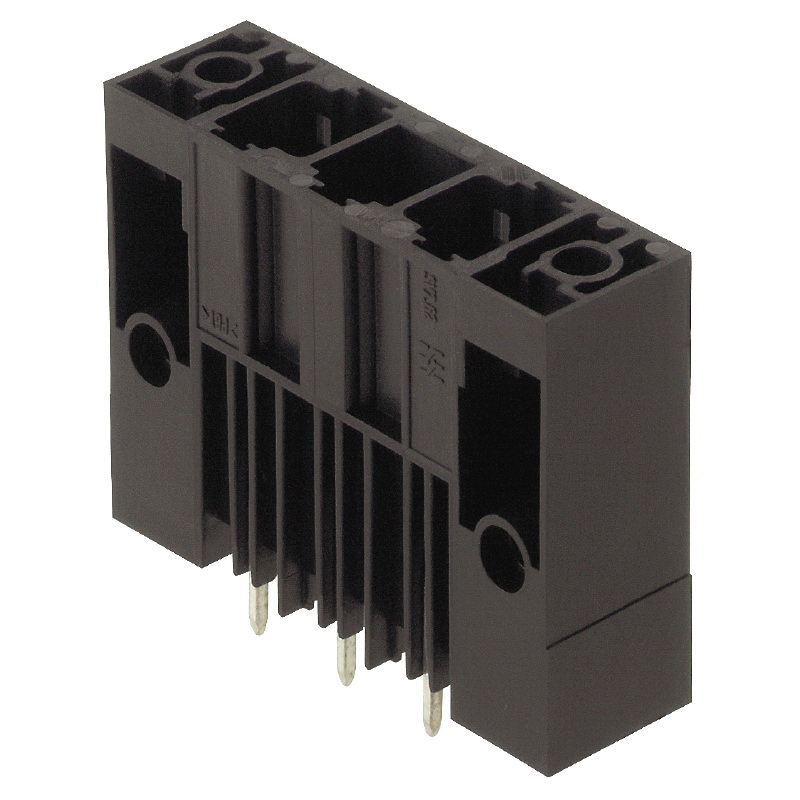

- Single-row, high current male header, for side by side mounting without sacrificing any poles or with patented flange for fast locking without tools
- Maximum connection and operating reliability thanks to a mating profile that prevents incorrect connection, with unique coding diversity, additional fastening and integrable positioning aid
- 3.5 mm pin length is optimized for lead-free wave soldering, plug-in direction 180 deg to solder pins
- 800 V IEC, 300 V UL
- https://youtu.be/XJZN4Q-uXbs
1852750000 Standards
RoHS Compliant|IEC 60664-1, IEC 61984|cULus File No. E60693 Recognized|UL 1059|CSA File No. 200039-1534443|UL 94 V-0 Flammability Rating|EAC CertifiedSKU #2244280Part Number #1852750000UNSPSC32151902UPC04032248386871
Image provided may only be a representation of final product and may include optional equipment
