1869550000
Weidmuller 1869550000 Terminal Block
Part Number # 1869550000
SKU # 2280434
$39.62 / 7Each
Typical price:$45.63 / Each
Weidmuller 1869550000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1869550000 |
| SKU #: | 2280434 |
| Amperage Rating: | 12/17.5 A |
| Dimensions: | 11.15 mm H x 76.59 mm W x 14.75 mm D |
| Series: | LSF Series |
| Spacing: | 3.81 mm |
| Terminal Type: | THT/THR Solder |
| Wire Size: | 28 to 14 AWG |
| Connection type: | Push-In Spring |
| Material: | LCP GF |
| UNSPSC: | 39121443 |
| UPC: | 04032248445400 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$39.62 / 7Each
Typical price:$45.63 / Each
Quantity:
Weidmuller 1869550000 Terminal Block
Brand: Weidmuller
Part Number: 1869550000
Additional Description: WEID-1869550000 LSF-SMT 3.81/20/90 1.5SN BK TU PCB TERMINAL, 3.81 MM, NUMBER OF POLES: 20, CONDUCTOR OUTLET DIRECTION: 90 , PUSH IN WITH ACTUATOR
Catalog Description: PCB terminal block (print terminal, board terminal) for simple and safe data transmission directly to the PCB.
1869550000 Item Features
- PCB terminal for fully automatic assembly in reflow soldering (SMT), with push-in conductor connection system
- Conductor inserted and slider operated in same direction (TOP)
- 320 V IEC, 300 V UL
- 17.5 A IEC, 12 A UL
- https://youtu.be/iefvOaQEGTI
1869550000 Standards
RoHS Compliant|CSA 200039-1664286|cULus File No. E60693 Recognized|EAC Certified|VDE Approved|UL 94 V-0 Flammability Rating|UL 1059SKU #2280434Part Number #1869550000UNSPSC39121443UPC04032248445400

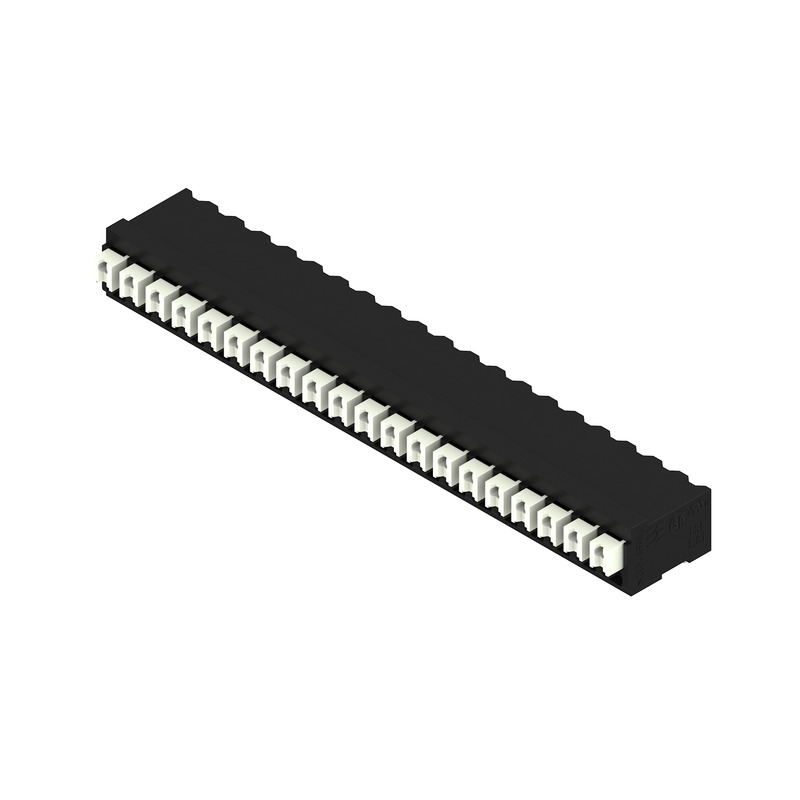

Image provided may only be a representation of final product and may include optional equipment
