1870100000

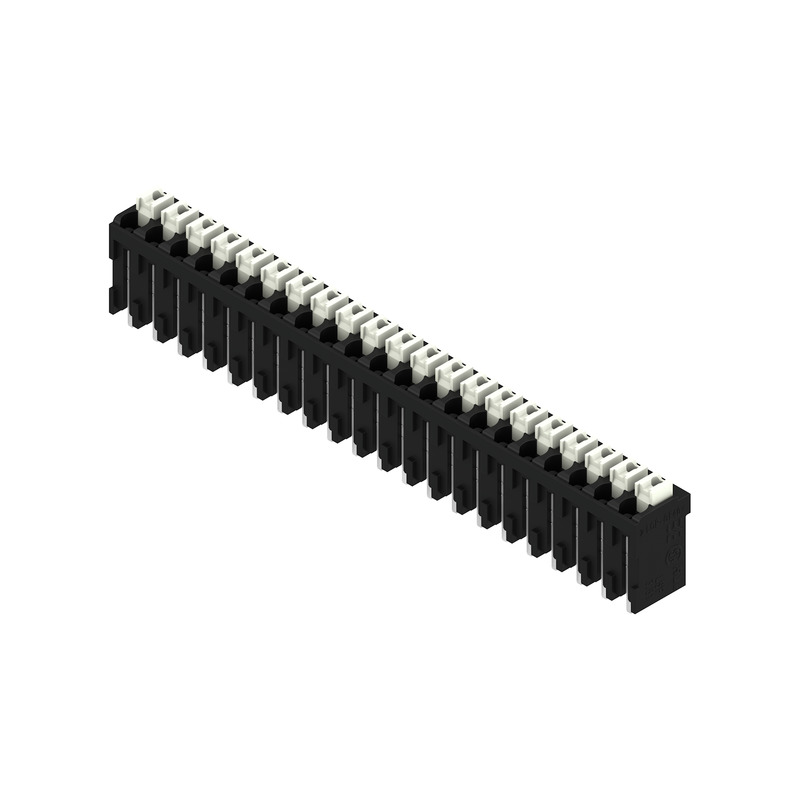

Weidmuller 1870100000 Terminal Block
Part Number # 1870100000
SKU # 2269332
$35.70 / 6Each
Typical price:$41.07 / Each
Weidmuller 1870100000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1870100000 |
| SKU #: | 2269332 |
| Amperage Rating: | 12/17.5 A |
| Dimensions: | 15.5 mm H x 80.4 mm W x 7.8 mm D |
| Series: | LSF Series |
| Spacing: | 3.81 mm |
| Terminal Type: | THT/THR Solder |
| Wire Size: | 28 to 14 AWG |
| Connection type: | Push-In Spring |
| Material: | LCP GF |
| UNSPSC: | 39121443 |
| UPC: | 04032248447091 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$35.70 / 6Each
Typical price:$41.07 / Each
Quantity:
Weidmuller 1870100000 Terminal Block
Brand: Weidmuller
Part Number: 1870100000
Additional Description: WEID-1870100000 LSF-SMT 3.81/21/180 1.5SN BK TU PCB TERMINAL, 3.81 MM, NUMBER OF POLES: 21, CONDUCTOR OUTLET DIRECTION: 180 , PUSH IN WITH ACTUATOR
Catalog Description: PCB terminal block (print terminal, board terminal) for simple and safe data transmission directly to the PCB.
1870100000 Item Features
- PCB terminal for fully automatic assembly in reflow soldering (SMT), with push-in conductor connection system
- Conductor inserted and slider operated in same direction (TOP)
- 320 V IEC, 300 V UL
- 17.5 A IEC, 12 A UL
- https://youtu.be/SfkmyN9mYLA
1870100000 Standards
RoHS Compliant|CSA 200039-1664286|cULus File No. E60693 Recognized|EAC Certified|VDE Approved|UL 94 V-0 Flammability Rating|UL 1059SKU #2269332Part Number #1870100000UNSPSC39121443UPC04032248447091
Image provided may only be a representation of final product and may include optional equipment
