1870420000
Weidmuller 1870420000 Terminal Block
Part Number # 1870420000
SKU # 2230047
$43.29 / 9Each
Typical price:$49.87 / Each
Weidmuller 1870420000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1870420000 |
| SKU #: | 2230047 |
| Dimensions: | 13.15 mm H x 60.2 mm W x 14.75 mm D, 13.15 mm H x 63.7 mm W x 14.75 mm D |
| Number of Poles: | 18 |
| UNSPSC: | 39121443 |
| UPC: | 04032248447763 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$43.29 / 9Each
Typical price:$49.87 / Each
Quantity:
- Weidmuller OMNIMATE Signal PCB Terminal Block, Series: LSF Series, 300/320 V, 12/17.5 A, 17 Pole, 28 to 14 AWG Wire, 8 mm Wire Strip Length, THT/THR Solder Terminal, 3.5 mm Spacing, Through-Hole Mounting, Push-In Spring Connection, -50 to 120 deg C, LCP GF, Black, 13.15 mm H x 60.2 mm W x 14.75 mm D Dimensions
1870420000 Item Features
- PCB terminal for fully automatic assembly in reflow soldering (SMT), with push-in conductor connection system
- Conductor inserted and slider operated in same direction (TOP)
- 320 V IEC, 300 V UL
- 17.5 A IEC, 12 A UL
- https://youtu.be/iefvOaQEGTI
1870420000 Standards
RoHS Compliant|CSA 200039-1664286|cULus File No. E60693 Recognized|EAC Certified|VDE Approved|UL 94 V-0 Flammability Rating|UL 1059SKU #2230047Part Number #1870420000UNSPSC39121443UPC04032248447763

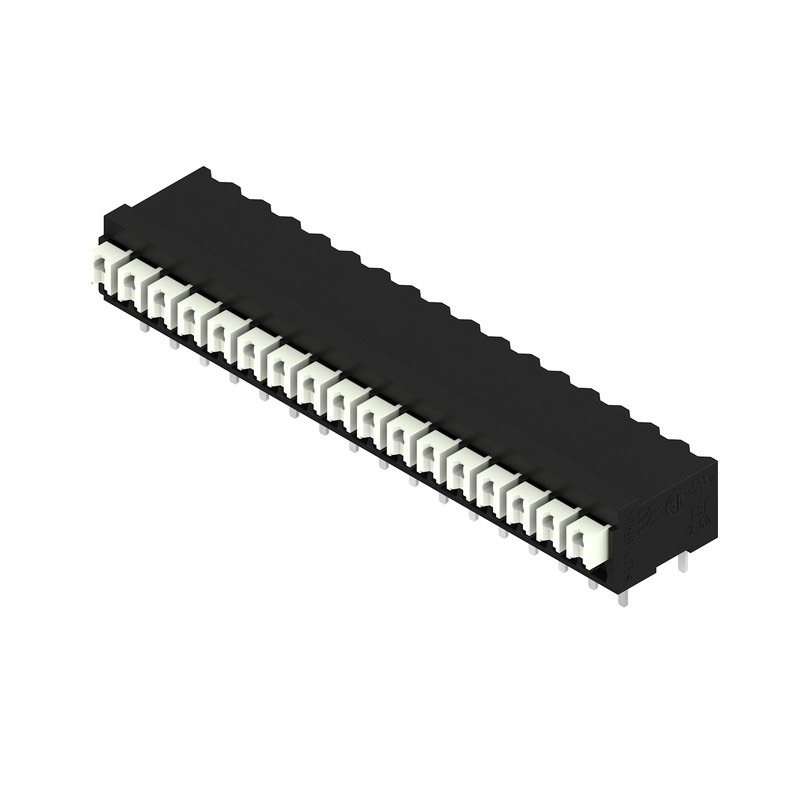

Image provided may only be a representation of final product and may include optional equipment
