Part Number # 1875740000
SKU # 2396129
Image Disclaimers Message
1875740000

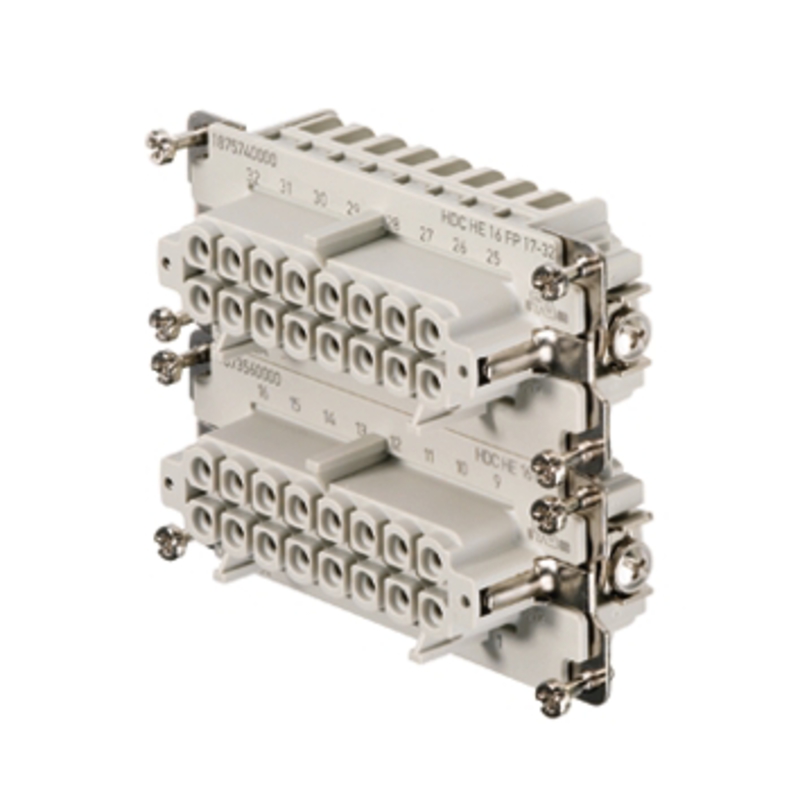

Weidmuller 1875740000 Female Contact Insert
Part Number # 1875740000
SKU # 2396129
Weidmuller 1875740000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1875740000 |
| SKU #: | 2396129 |
| Dimensions: | 33.8 mm H x 34 mm W x 84.5 mm D |
| Finish: | Silver Passivated |
| Series: | HDC |
| Specifications: | 500 V, 16 A, SZ 6, 33.8 mm H of Socket, 84.5 mm Total L Base |
| Suitable For Use With: | Heavy Duty Connector |
| Temperature Rating (Degrees F): | -40 to 125 deg C |
| Type: | 16-Pole |
| Wire Size: | 20 to 12 AWG |
| Connection type: | Push-In |
| Country of origin: | CN |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 32151901 |
| UPC: | 04032248466023 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Weidmuller 1875740000 Female Contact Insert
Brand: Weidmuller
Part Number: 1875740000
Weidmuller Female Contact Insert, 16-Pole, Series: HDC, 20 to 12 AWG Wire, Push-In Connection, For Use With: Heavy Duty Connector, -40 to 125 deg C, Specifications: 500 V, 16 A, SZ 6, 33.8 mm H of Socket, 84.5 mm Total L Base, Silver Passivated, 33.8 mm H x 34 mm W x 84.5 mm D Dimensions
Additional Description: WEID-1875740000 HDC HE 16 FP 17-32 CONTACT INSERT (INDUSTRY PLUG-IN CONNECTORS), FEMALE, 500 V, 16 A, NUMBER OF POLES: 16, PUSH IN, SIZE: 6
Catalog Description: Insert for industrial plug-in connectors, consisting of contact element and insulating body.
1875740000 Includes
01875740000 Standards
RoHS Compliant|UL File No. E92202|UL 94 V-0 Flammability Rating|CSA Certified|cULus Recognized|REACH CompliantSKU #2396129Part Number #1875740000UNSPSC32151901UPC04032248466023
