1884550000
Weidmuller 1884550000 Terminal Block
Part Number # 1884550000
SKU # 2337172
$31.08 / 28Each
Typical price:$35.70 / Each
Weidmuller 1884550000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1884550000 |
| SKU #: | 2337172 |
| Dimensions: | 14.4 mm H x 19.2 mm W x 12.7 mm D, 14.4 mm H x 24.2 mm W x 12.7 mm D |
| UNSPSC: | 39121443 |
| UPC: | 04032248489145 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$31.08 / 28Each
Typical price:$35.70 / Each
Quantity:

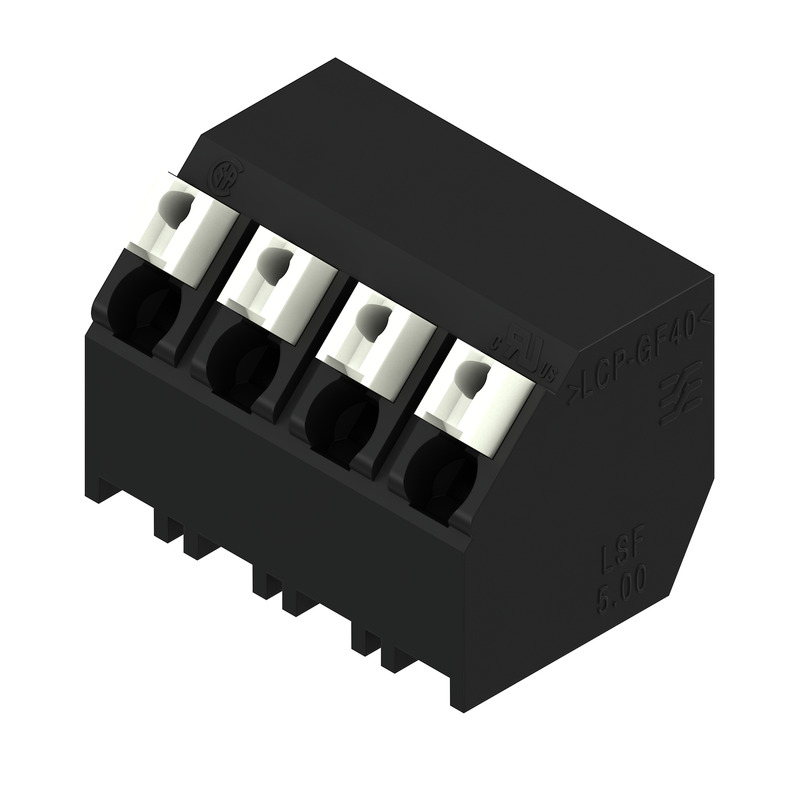

- Weidmuller OMNIMATE Signal PCB Terminal Block, Series: LSF Series, 300/500 V, 12/17.5 A, 4 Pole, 28 to 14 AWG Wire, 8 mm Wire Strip Length, THT/THR Solder Terminal, 5 mm Spacing, Through-Hole Mounting, Push-In Spring Connection, -50 to 120 deg C, LCP GF, Black, 14.4 mm H x 19.2 mm W x 12.7 mm D Dimensions
1884550000 Item Features
- PCB terminal for fully automatic assembly in reflow soldering (SMT), with push-in conductor connection system
- Conductor inserted and slider operated in same direction (TOP)
- 500 V IEC, 300 V UL
- 17.5 A IEC, 12 A UL
- https://youtu.be/SfkmyN9mYLA
1884550000 Standards
RoHS Compliant|CSA 200039-1664286|cULus File No. E60693 Recognized|EAC Certified|VDE Approved|UL 94 V-0 Flammability Rating|UL 1059SKU #2337172Part Number #1884550000UNSPSC39121443UPC04032248489145
Image provided may only be a representation of final product and may include optional equipment
