1885210000

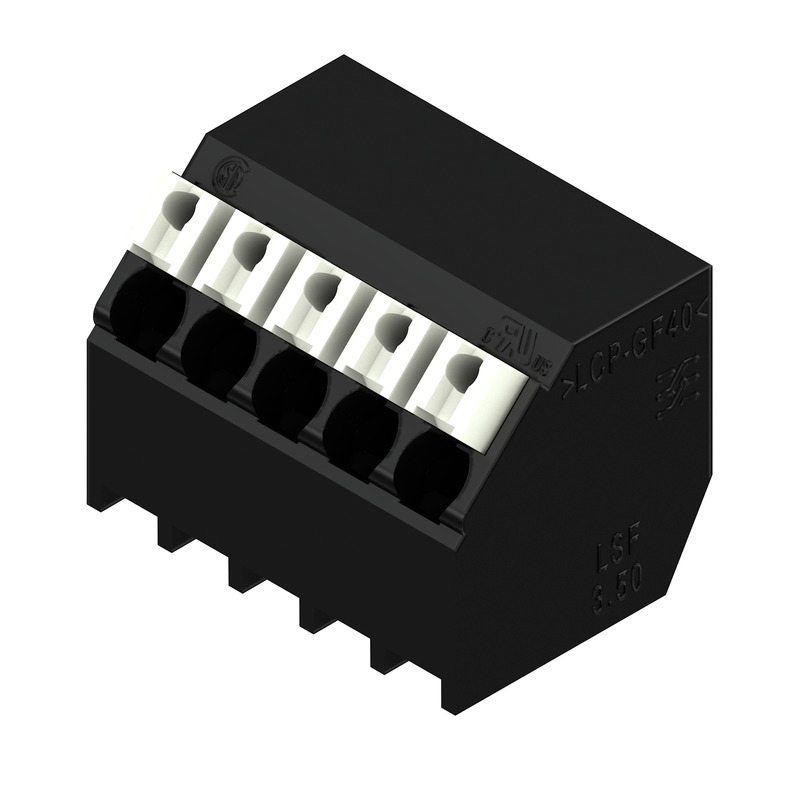

Weidmuller 1885210000 Terminal Block
Part Number # 1885210000
SKU # 2272615
$41.40 / 30Each
Typical price:$47.79 / Each
Weidmuller 1885210000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1885210000 |
| SKU #: | 2272615 |
| Amperage Rating: | 12/17.5 A |
| Dimensions: | 14.4 mm H x 18.2 mm W x 12.7 mm D |
| Series: | LSF Series |
| Spacing: | 3.5 mm |
| Terminal Type: | THT/THR Solder |
| Wire Size: | 28 to 14 AWG |
| Connection type: | Push-In Spring |
| Material: | LCP GF |
| UNSPSC: | 39121443 |
| UPC: | 04032248490547 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$41.40 / 30Each
Typical price:$47.79 / Each
Quantity:
- Weidmuller OMNIMATE Signal PCB Terminal Block, Series: LSF Series, 300/320 V, 12/17.5 A, 5 Pole, 28 to 14 AWG Wire, 8 mm Wire Strip Length, THT/THR Solder Terminal, 3.5 mm Spacing, Through-Hole Mounting, Push-In Spring Connection, -50 to 120 deg C, LCP GF, Black, 14.4 mm H x 18.2 mm W x 12.7 mm D Dimensions
1885210000 Item Features
- PCB terminal for fully automatic assembly in reflow soldering (SMT), with push-in conductor connection system
- Conductor inserted and slider operated in same direction (TOP)
- 320 V IEC, 300 V UL
- 17.5 A IEC, 12 A UL
- https://youtu.be/SfkmyN9mYLA
1885210000 Standards
RoHS Compliant|CSA 200039-1664286|cULus File No. E60693 Recognized|EAC Certified|VDE Approved|UL 94 V-0 Flammability Rating|UL 1059SKU #2272615Part Number #1885210000UNSPSC39121443UPC04032248490547
Image provided may only be a representation of final product and may include optional equipment
