1886570000
Weidmuller 1886570000 Electrical Terminal
Part Number # 1886570000
SKU # 2235705
$904.50 / 50Each
Typical price:$1004.95 / Each
Weidmuller 1886570000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1886570000 |
| SKU #: | 2235705 |
| Dimensions: | 1.996 in H x 0.315 in W x 1.673 in D |
| Terminal Size: | 4 sq-mm |
| Torque Rating: | 0.4 to 0.4 N-m |
| UNSPSC: | 39121410 |
| UPC: | 04032248492053 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$904.50 / 50Each
Typical price:$1004.95 / Each
Quantity:
- Klippon Fuse Terminal Block, Series: W Series, 150 V AC, 6.3 A, 30 to 12 AWG Wire, 8 mm Wire Strip Length, 4 sq-mm Terminal, 0.4 to 0.4 N-m Torque, Snap-Fit Mounting, Screw Connection, -50 to 120 deg C, Wemid, Black, 1.996 in H x 0.315 in W x 1.673 in D Dimensions
1886570000 Item Features
- Fuse isolator, with LED, closed
- TS 35 mounting rail
- Right open sides
- 4 sq-mm screw connection
- 0.6 x 3.5 mm blade
- On side connection direction
- 0.5 to 4 sq-mm minimum/maximum clamping range, rated connection
- 0.5 to 2.5 sq-mm minimum/maximum rated wire connection cross-section, finely stranded with wire to end ferrules DIN 46228/1
- A3 gauge to IEC 60947-1
- 2 number of connections
- Two torque level with DMS electric screwdriver
- 1 number of similar terminal
- 0.5 to 1.5 sq-mm minimum/maximum 2 clampable wires connection cross-section, finely stranded with wire to end ferrules DIN 46228/1
- 60 to 150 VAC/VDC operating voltage for display
- G-Si 5 x 20 cartridge fuse
- For screw fixing fuse holder
- UL 94 flammability rating V-0
- 1 mOhm volume-resistance according to IEC 60947-7-x
- 2.5 W at 6.3 A at 47 deg C power loss for short circuit protection only for a composite arrangement
- WSI 4/LD 60-150V AC/DC type
- https://www.youtube.com/watch?v=DBdk5eXPQb8
1886570000 Standards
CSA Certified|CE Certified|Certified|cURUS Listed|EAC|LLOYDSREG RoHS CompliantSKU #2235705Part Number #1886570000UNSPSC39121410UPC04032248492053

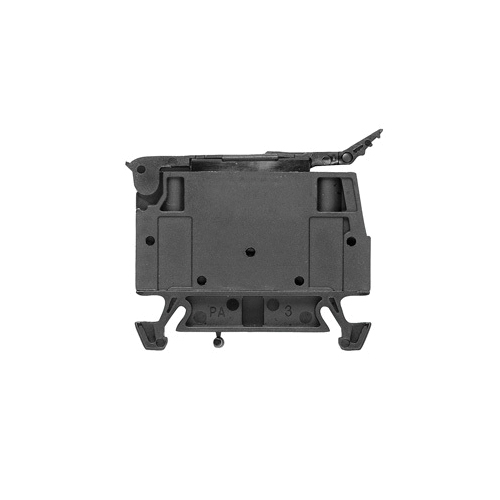

Image provided may only be a representation of final product and may include optional equipment
