1887210000

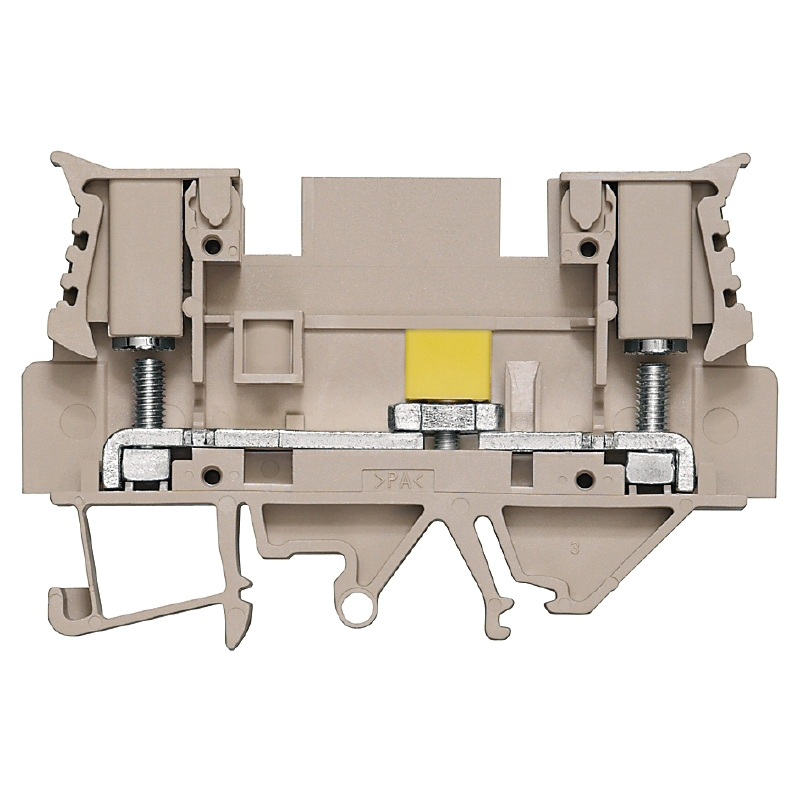

Weidmuller 1887210000 Electrical Terminal
Part Number # 1887210000
SKU # 2215539
$574.00 / 50Each
Typical price:$637.70 / Each
Weidmuller 1887210000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1887210000 |
| SKU #: | 2215539 |
| Amperage Rating: | 30/41 A |
| Dimensions: | 76.5 mm H x 11 mm W x 52 mm D |
| Series: | W Series |
| Temperature Rating (Degrees F): | -50 to 120 deg C |
| Terminal Size: | M4 |
| Torque Rating: | 1.2 to 2.4 N-m |
| Wire Size: | 26 to 10 AWG |
| Color: | Dark Beige |
| Connection type: | Screw |
| Country of origin: | BR |
| Material: | Wemid |
| Mounting type: | Snap-On |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04032248526796 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$574.00 / 50Each
Typical price:$637.70 / Each
Quantity:
Weidmuller 1887210000 Electrical Terminal
Brand: Weidmuller
Part Number: 1887210000
Additional Description: WEID-1887210000 WTL 6/4 FF TEST-DISCONNECT TERMINAL, SCREW CONNECTION, 6 MM, 800 V, 41 A, SLIDING, CROSS-DISCONNECT: WITHOUT, INTEGRAL TEST SOCKET: NO, TS 35, DARK BEIGE
Catalog Description: Terminal block for separating circuits during tests or measurements.
1887210000 Item Features
- Test disconnect terminal blocks featuring spring and screw connection technology allow you to create all the important converter circuits for measuring current, voltage and power in a safe and sophisticated way
- 800 V IEC, 600 V UL and CSA
- 41 A IEC, 30 A UL and CSA
1887210000 Standards
cULus File No. E60693 Recognized|RoHS Compliant|UL 94 V-0 Flammability Rating|CE Certified|CSA 227775-1609344|cULus Recognized|EAC CertifiedSKU #2215539Part Number #1887210000UNSPSC39121410UPC04032248526796
